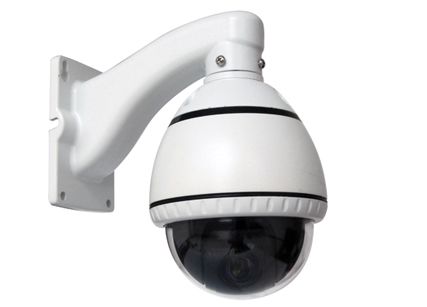

| Name： | MF-MP10X |
| Category： | PTZ Cameras |
| Application： | Indoor And Outdoor |
| Download： |
None
|
|
|
|
|
◆ 3.5 inch Vandalproof Mini IR High Speed
◆ Pan range: 0°~360° Continue
◆ Tilt range: 0°~90° Flip
◆ Pan Speed: Max 120°/sec Preset: 256
◆ Weatherproof Outdoor IP66
◆ RS485, Pelco D/P supported
◆ 10X (f=3.8~38mm)
◆ Size: Ø138x212mm Weight: 2.8Kg
◆ Power off memory, lightning protection
◆ Preset: 256, 4 pattern scans, 8 cruise line
|
Model NO. |
MF-MPD10X |
MF-MPG10X |
|
Image Sensor |
1/3" Super HAD Color CCD |
1/3" Super HAD Color CCD |
|
Resolution |
Color 600TVL,Black 650TVL |
Color 700TVL,Black 750TVL |
|
Electronic Shutter |
NTSC:1/60-1/100,000 second< PAL:1/50-1/100,000 Second |
|
Gamma |
0.45/1(Set To 0.45 Before shipment) |
|
Lens |
10X (f=3.8~38mm) |
|
Video Output |
1.0Vp-p,75Ω,Composite |
|
AGC |
AUTO |
|
BLC |
AUTO |
|
AWB |
AUTO |
|
Scanning system |
2:1 Internal |
|
S/N Ratio |
＞52dB |
|
Sync system |
Internal |
|
Power Supply |
＜500mA (IR) DC12V |
|
Life time |
20,000 hours |
|
Dimension |
Ø138x212mm |
|
Weight |
2.8Kg |
|
Power |
12VDC | |
|
|
