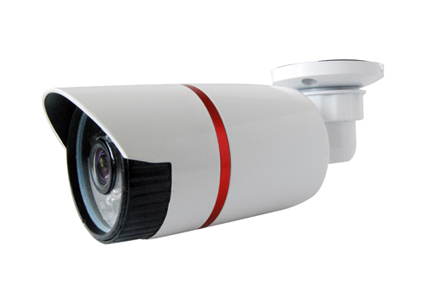

| Name： | MF-13B |
| Category： | Analog Cameras |
| Application： | Indoor And Outdoor |
| Download： |
None
|
|
|
|
|
◆ Weatherproof Aluminium Housing
◆ IR LED: ￠5X24PCSIR LED Working Distance:20M
◆ HDIS/CMOS/SONY CCD
◆ Water Resistance: IP66 Cable Built-in Bracket IP66
◆ Lens: 3.6mm Lens (2M pixels)
|
Model NO. |
MF-C31W13B |
MF-C32W13B |
MF-C33W13B |
MF-C41W13B |
MF-S51W13B |
MF-S53W13B |
|
Image Sensor |
1/3" CMOS |
1/3" HDIS |
1/3" SONY |
|
Resolution |
700TVL |
1000TVL |
800TVL |
800TVL |
700TVL |
1200TVL |
|
Pixels |
PAL: 720（H）x 576（V） |
PAL:1280（H）x 960（V） |
PAL:976（H）x 582（V） |
PAL: 976（H）x 582（V） |
1280(H) x 1024(V) |
|
NTSC: 720（H）x 487（V） |
NTSC:1280（H）x 960（V） |
NTSC:976（H）x 494（V） |
NTSC: 976（H）x494（V） |
|
Min. Illumination |
0.05Lux |
0.005Lux |
0.001Lux |
|
Shutter Control |
NTSC:1/60-1/100,000 second,PAL:1/50-1/100,000 Second |
|
Gamma |
0.45/1(Set To 0.45 Before shipment) |
|
Lens |
3.6mm Lens (2M pixels) |
|
Video Out |
1.0Vp-p/75Ω composite |
|
AGC |
AUTO |
|
BLC |
AUTO |
|
AWB |
AUTO |
|
S/N Ratio |
>52dB |
|
Scanning sys. |
2:1 Internlace |
|
Sync sys. |
Internal |
|
Power Supply |
＜500mA (IR) DC12V |
|
Life time |
20,000 hours |
|
IR distance |
20M |
|
Dimension |
193(W) x67(H) x79(D)mm |
|
Power |
DC12V |
|
Net Weight |
550g | |
|
|
