◆ PAL/NTSC System
◆ Sony CCD Only
◆ 700/1200 TVL Option

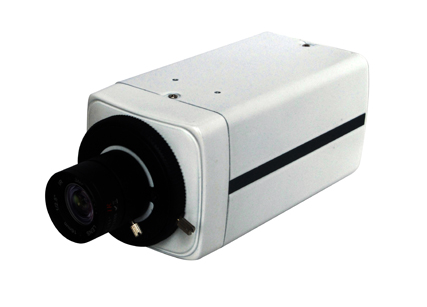

◆ Standard Box Camera
◆ Sony CCD Iris Control: DC/VIDEO With RS485
|
Model NO. |
MF-S52B1 |
MF-S53B1 |
|
Image Sensor |
Color 1/3" SONY |
|
Resolution |
700TVL |
1200TVL |
|
Pixels |
PAL: 976（H）x 582（V） |
1280(H) x 1024(V) |
|
NTSC: 976（H）x494（V） |
|
Min. Illumination |
0.005Lux |
0.001 |
|
Electronic Shutter |
NTSC:1/60-1/100,000 second< PAL:1/50-1/100,000 Second |
|
Gamma |
0.45/1(Set To 0.45 Before shipment) |
|
Video Output |
1.0Vp-p,75Ω,Composite |
|
AGC |
AUTO |
|
BLC |
AUTO |
|
AWB |
AUTO |
|
Scanning system |
2:1 Internal |
|
S/N Ratio |
＞52dB |
|
Sync system |
Internal |
|
Power Supply |
＜500mA (IR) DC12V |
|
Life time |
20,000 hours |
|
Dimension |
110(W)x45(H)x55(D)mm |
|
Weight |
350g |
|
Power |
12VDC |
|
|
|
|
|
|
|
