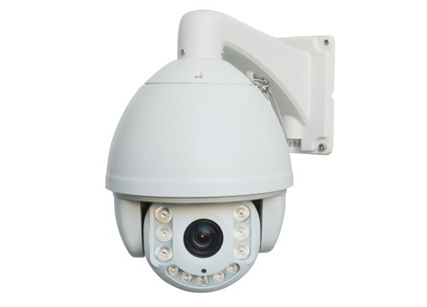

PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
◆ IR distance 150M, Multiple languages for OSD menu, English, Spanish etc.
◆ Support ambient light detection, IR Illumination On 1-15 grade selectable
◆ Dome ID, baud rate, communication protocol can be set via the controller
◆ Supported Protocols: Pelco D/P; Others on special request
◆ 7" Double layer metal body construction, waterproof IP 66
◆ Optional Samsung/Sony module
◆ Optional, 4 Alarm inputs and 2 alarm outputs
Model No. |
MF-PZ30XIR |
M-PK23XIR |
M-PJ18XIR |
Model NO. |
SONY MF-1430 |
SAMSUNG SCM-2371 |
SONY FCB-CX480 |
Image Sensor |
30X Optical Zoom |
23X Optical & 16X Digital Zoom |
18X Optical & 12X Digital Zoom |
Resolution |
Color 700TVL, Black 750TVL |
Color 650TVL, Black 700TVL |
Color 540TVL, Black 600TVL |
Electronic Shutter |
NTSC:1/60-1/100,000 second< PAL:1/50-1/100,000 Second |
Gamma |
0.45/1(Set To 0.45 Before shipment) |
Lens |
30X /23X/18X |
Video Output |
1.0Vp-p,75Ω,Composite |
AGC |
AUTO |
BLC |
AUTO |
AWB |
AUTO |
Scanning system |
2:1 Internal |
S/N Ratio |
>52dB |
Sync system |
Internal |
IR Leds |
11PCS |
IR Distance |
150m |
Power Supply |
<500mA (IR) DC12V |
Life time |
20,000 hours |
Temperature |
-30℃ ~ +60℃ |
Dimension |
Ø210x380mm |
Weight |
8.5Kg |
Power |
12VDC |
