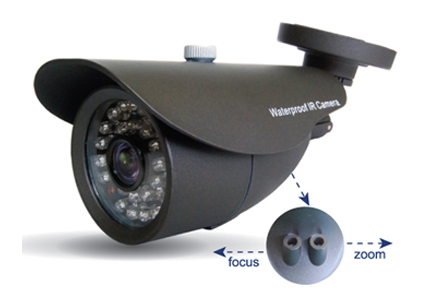

Model No.

MF-CVIW3D

Image Sensor

1/3” Megapixels CMOS

Effective Picture ( H*V )

1280 (H) x 720 (V)

Horizontal Resolution

720P

Video Frame Rate

1280×720@25 fps； 1280×720@30 fps 1280×720@50 fps；1280×720@60 fps

Minimum Illumination

0.01Lux@F1.2(AGC ON),0Lux IR on

Synchronous System

Internal, Negative sync.

Auto Electronic Shutter

4/25s~1/45,000s

Noise Reduction

3D/2D

IR Distance

40 Meters

Transmission Distance　

Over 500m via 75-3 coaxial cable

IR Power On

CDS Auto Control

Video Output

HD-CVI

Auto Gain Control

Auto

Power/Current

12VDC(±10%)/ 450mA

Lens

2.8-12mm

Water Resistance

IP66

Dimension (mm)

228(W) x97(H) x82(D)mm

Weight (g)

880

Storage Temperature

-30~ +60℃ RH95% Max

Operating Temperature

-20~ +55℃ RH95% Max
