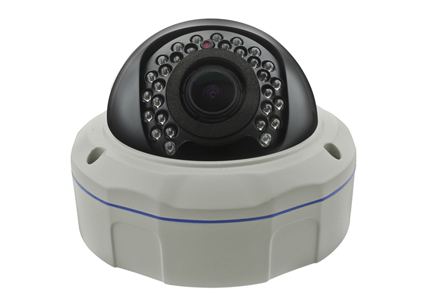

◆ High definition IP weatherproof dome camera
◆ H.264 compression format support dual-stream, AVI, 0.1MM~6Mpbs
◆ RJ45 interface 10/100M bps Ethernet
◆ IE, Firefox, Safari etc.
◆ Support standard ONVIF 2.0
◆ Network protocols HTTP, TCP/IP,RTSP, FTP, PPOE, DHCP, DNS, DDNS, Upup etc.
◆ Support CVBS, WEB, OSD, RTP, motion detection and IO alarm
◆ Smart phone & mobile PAD mornitoring manual included
◆ Day and night camera type
◆ Standard match varifocal 2.8-12mm 3.0MP lens manual iris
◆ NTSC/PAL format
◆ Good performance IR view distance 30M
◆ Mounted on ceiling
◆ Manual, CMS software and installation spare parts included
|
Item NO. |
MF-NIRD19D |
MF-NIRD19Z |
MF-NIRD19G |
|
Network Chip |
Realtek 10/100M |
Realtek 10/100M |
Realtek 10/100M |
|
Image Sensor |
1/4" CMOS 1.3 Megapixel sensor |
1/3" CMOS 1.3 Megapixel AR0130 |
1/2.5" CMOS 2.0 Megapixel |
|
Effective Pixels |
1280(V)*720(H) |
1280(V)*960(H) |
1920(V)*1080(H) |
|
Min. Illumination |
color 0.1lux/F1.2, B/W 0.01lux/F1.2 |
|
Video coding |
H.264 Main Profile coding |
|
Main Stream |
1280(V)*720(H),1-30fps |
1280(V)*960(H),1-30fps |
1920(V)*1080(H),1-30fps |
|
Sub Stream |
D1, 1~30fps |
|
Video Compressed |
0.1Mbps～4Mbps,CBR/VBR supported |
|
Subtitles Superimposed |
Chanel Name, Date And Time Supported |
|
Video Code |
G.711,G726 32K Stereo Supported |
|
Lens |
2.8-12mm 3.0 Megapixel Lens |
|
IR Range |
30m |
|
I/O input and output |
1CH for switching value input/1CH for switching value output |
|
Network Interface |
10/100M Ethernet Port,RJ45 |
|
Data Storage |
Video, Image Files |
|
Storage Mechanisms |
Manual, Auto(Cycling, Timing, Alarm switch, Motion detecting) |
|
Alarm Data Transmission |
Browser, Software management |
|
Protocols |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,PPPOE,UPNP |
|
ONVIF Protocols |
Standard ONVIF2.0 |
|
Personal Computer |
IE, Firefox, Safari etc. |
|
Smart phone |
Smart phone and iphone Platform |
|
Operating Temperature |
-20℃~+60℃ |
|
