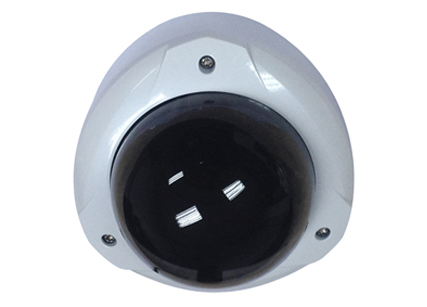

Product Model

MF-IP360DV/H

System

Embed RTOS,32 bit DSP(TI DM368),

watch dog,32M FLASH,128M DDR2

Sensor

3.0M Pixel 1/2.5" CMOS Sensor

Output resolution

2048(H)×1536(V)

D/N Mode

Auto switching, black and white vide and IR cut action linkage

Illumination

Color 1.0Lux@F1.2,Black 0.1 Lux@F1.2

Video processing

H.264 video compression, dual streaming, AVI format, 0.1M~6Mpbs adjustable;

Lens

360 degree Megapixel Lens

Video Output

Main streaming:2592×1920,2048×1536,1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720

Sub streaming;960*540,640×360,480×270,352×288,320×240,

352×192,320×192,288×192,256×192;500

Frame rate

5.0MP 10 frame,3.0MP 17 frame, Less than2.0MP 25 frame(full real time),support 1~25frame/seconds adjustable

Network interface

RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported

Access Protocol

Standard ONVIF Protocol, Support third party access ；

PC; Support IE6.0 and above

Smartphone ;Support Android、iPhone

Function

WEB configuration, OSD, real-time video transmission,

motion detection and picture pop up linkage, front end storage ,playback and download, uniform client and platform system application, complete SDK for second development.

Power supply

DC12V/POE（optional）

Operation temperature

-10℃～+60℃, 10％～90％RH

Dimension

Φ141*120mm

Weight

800g
