Description:

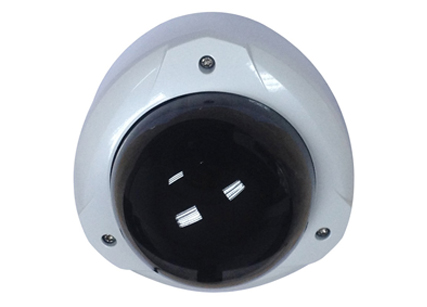

Camera Application: 360°Camera Suitable for Bank, Telecom, Government, School, Airport, Transportation, Police, Judiciary, Prison, Supermarket & Hotel ect. Match for: Monitor and 1080P resolution equipments.
Feature:
◆High quality progressive scanning CMOS
◆H.264 High profile
◆support dual stream, support mobile phone
◆Standard ONVIF Protocol
◆provide a unified free client free to achieve video recording/playback/preview
◆support power supply DC12V
Technical Specification:
|
Product Model |
MF-IP360DV |
|
System |
Embed RTOS,32 bit DSP(TI DM365) |
|
watch dog,32M FLASH,128M DDR2 |
|
Sensor |
1.3M Pixel 1/3" CMOS Sensor |
|
Output resolution |
1280(H)×960(V) |
|
D/N Mode |
Auto switching, black and white vide and IR cut action linkage |
|
Illumination |
0.1 Lux |
|
Video processing |
H.264 video compression, dual streaming, AVI format, 0.1M~6Mpbs adjustable; |
|
Lens |
360 degree Megapixel Lens |
|
Video Output |
Main streaming:1280×960,1024×768,1280×720 |
|
Sub streaming;960×540,640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192 |
|
Frame rate |
1.3MP 25 frame(full real time),support 1~25frame/seconds adjustable |
|
Network interface |
RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
|
Access Protocol |
Standard ONVIF Protocol, Support third party access ； |
|
PC; Support IE6.0 and above |
|
Smartphone ;Support Android、iPhone |
|
Function |
WEB configuration, OSD, real-time video transmission, |
|
motion detection and picture pop up linkage, front end storage ,playback and download, uniform client and platform system application, complete SDK for second development. |
|
Power supply |
DC12V |
|
Operation temperature |
-10℃～+60℃, 10％～90％RH |
|
Dimension |
110*140mm |
|
Weight |
800g | |
