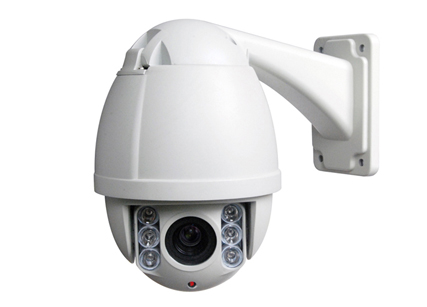

◆ 4 inch High speed PTZ camera
◆ Pan range: 0°~360° Continue
◆ Tilt range: 0°~90° Flip
◆ Pan Speed: Max 300°/sec Preset: 256
◆ Weatherproof Outdoor IP66
◆ RS485, Onvif 2.0 supported
◆ 10X (f=3.8~38mm)
◆ Size: Ø138x212mm Weight: 2.8Kg
◆ Power off memory, lightning protection
◆ Preset: 256, 4 pattern scans, 8 cruise line
|
Model NO. |
MF-NMPTZ1Z10X |
MF-NMPTZ1G10X |
|
Image Sensor |
1/3" CMOS 1.3 Megapixel AR0130 |
1/2.5" CMOS 2.0 Megapixel |
|
Electronic Shutter |
NTSC:1/60-1/100,000 second< PAL:1/50-1/100,000 Second |
|
Gamma |
0.45/1(Set To 0.45 Before shipment) |
|
Lens |
10X (f=3.8~38mm) |
|
Video Output |
1.0Vp-p,75Ω,Composite |
|
AGC |
AUTO |
|
BLC |
AUTO |
|
AWB |
AUTO |
|
Scanning system |
2:1 Internal |
|
S/N Ratio |
＞52dB |
|
Sync system |
Internal |
|
Power Supply |
＜500mA (IR) DC12V |
|
Life time |
20,000 hours |
|
Dimension |
Ø138x212mm |
|
Weight |
2.8Kg |
