| Name： | MF-MDVR04B |
| Category： | DVRs and NVRs |
| Application： | Indoor |
| Download： |
None
|
|
|
|
|
Product Summary

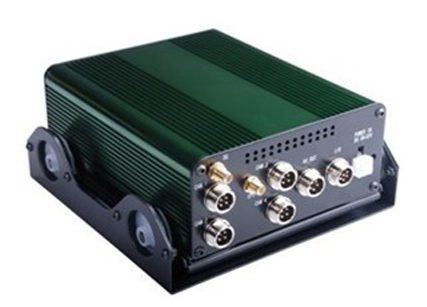

The DVR (Automotive) is a cost-effective, functional and scalable device designed for video surveillance of your mobile assets. It uses a high-speed processor, an embedded Linux platform and combines the most advanced IT processes（H.264 Video Compression/Decompression) and the best Product structure design(Double shockproof ). DVR enables CIF, HD1 and D1 video formats to record. The DVR can be record drivers' many driving information, such as driving speed/video/audio and others, recording data are uploaded to HDD or SD Memory Cards, It's make company or personal very easy to manage the vehicles. The DVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability.
|
Items |
Parameters |
Specifications |
|
System |
Language |
Chinese/English |
|
System |
OSD |
Graphical User interface（OSD menu） |
|
Password |
Users Password/ Administrator Password |
|
Vision |
Video input |
4-CH video input 1.0Vp-p，75Ω |
|
Video output |
1-CH video output 1.0Vp-p，75Ω |
|
Vision |
Preview |
Support 1 channel or synchronous 4 channels preview. |
|
Recording Ratio |
PAL -25 Frame/s NTSC -30 Frame/s |
|
Image Compression |
H.264 Main profile， |
|
Audio |
Audio input |
4-ch Audio input 600Ω |
|
Audio |
Audio output |
1-ch Audio output 600Ω |
|
Recording mode |
Audio & Video sync. |
|
Image |
Video format |
4-ch CIF: 25fps, 4-ch HD1: 25fps, 1D1: 25fps + 3CIF: |
|
processing & |
25fps, |
|
storage |
Video stream |
ISO14496-10 |
|
Image |
Video Rate（kbps） |
CIF: 1536Kbps-128Kbps, 6 levels optional. |
|
processing & storage |
Highest:1 level |
|
HD1: 2048Kbps-380Kbps, 6 levels optional. |
|
Highest:1 level |
|
D1: 2048Kbps-400Kbps, 6 levels optional. |
|
Highest:1 level |
|
Audio Bit rate |
4Kbytes/s |
|
Storage |
SATA 2.5’’ hard drive （support to 2T）and SD card |
|
storage（support to 64GB） |
|
Alarm |
Alarm input |
4 switching value |
|
Software |
Analysis of PC |
Video playback on PC，and analysis the vehicle info in |
|
playback |
the file. |
|
Upgrade |
Support SD cards upgrade. | |
|
|
