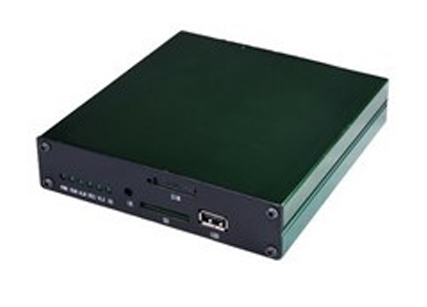

Product Summary The DVR (Automotive) is a cost-effective, functional and scalable device designed for video surrveillance of your mobile assets. It uses a high-speed processor, an embedded Linux platform and combines the most advanced IT processes such as H.264 Video Compression/Decompression. DVR enables CIF, HD1 and D1 video formats to record. The DVR can be record drivers' many driving information, such as driving route/speed/video/audio and others, recording data are uploaded to SD Memory Card, It's make company or personal very easy to manage the vehicles. The DVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability.
Items Parameters Specifications System Language Chinese/English OSD Graphical User interface（OSD menu） Password Users Password/ Administrator Password Vision Video input 4-CH video input 1.0Vp-p,75Ω Video output 1-CH video output 1.0Vp-p,75Ω Preview Support 1 channel or synchronous 4 channels preview. Recording Ratio PAL -25 Frame/s NTSC -30 Frame/s Image Compression H.264 Main profile， Audio Audio input 4-ch Audio input 600Ω Audio output 1-ch Audio output 600Ω Recording mode Audio & Video sync. Image Video format 4-ch CIF: 25fps, 4-ch HD1: 25fps, 1D1: 25fps + 3CIF: processing &storage 25fps, Video stream ISO14496-10 Video Rate（kbps） CIF: 1536Kbps-128Kbps, 6 levels optional. Highest:1 level HD1: 2048Kbps-380Kbps, 6 levels optional. Highest:1 level D1: 2048Kbps-400Kbps, 6 levels optional. Highest:1 level Audio Bit rate 4Kbytes/s Storage SD card storage（support to 64GB） Alarm Alarm input 6 switching value Software Analysis of PC Video playback on PC，and analysis the vehicle info in playback the file. Upgrade | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
