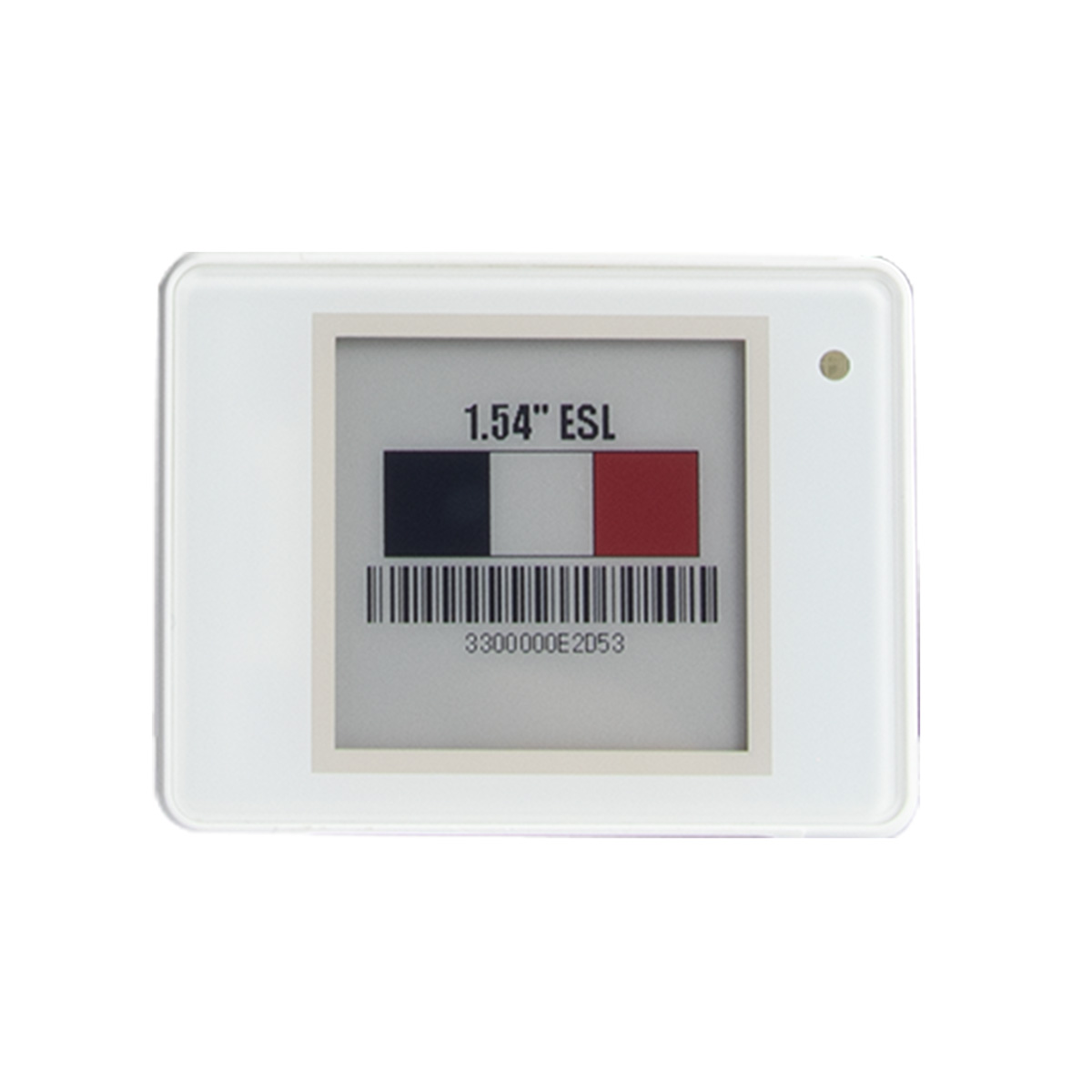

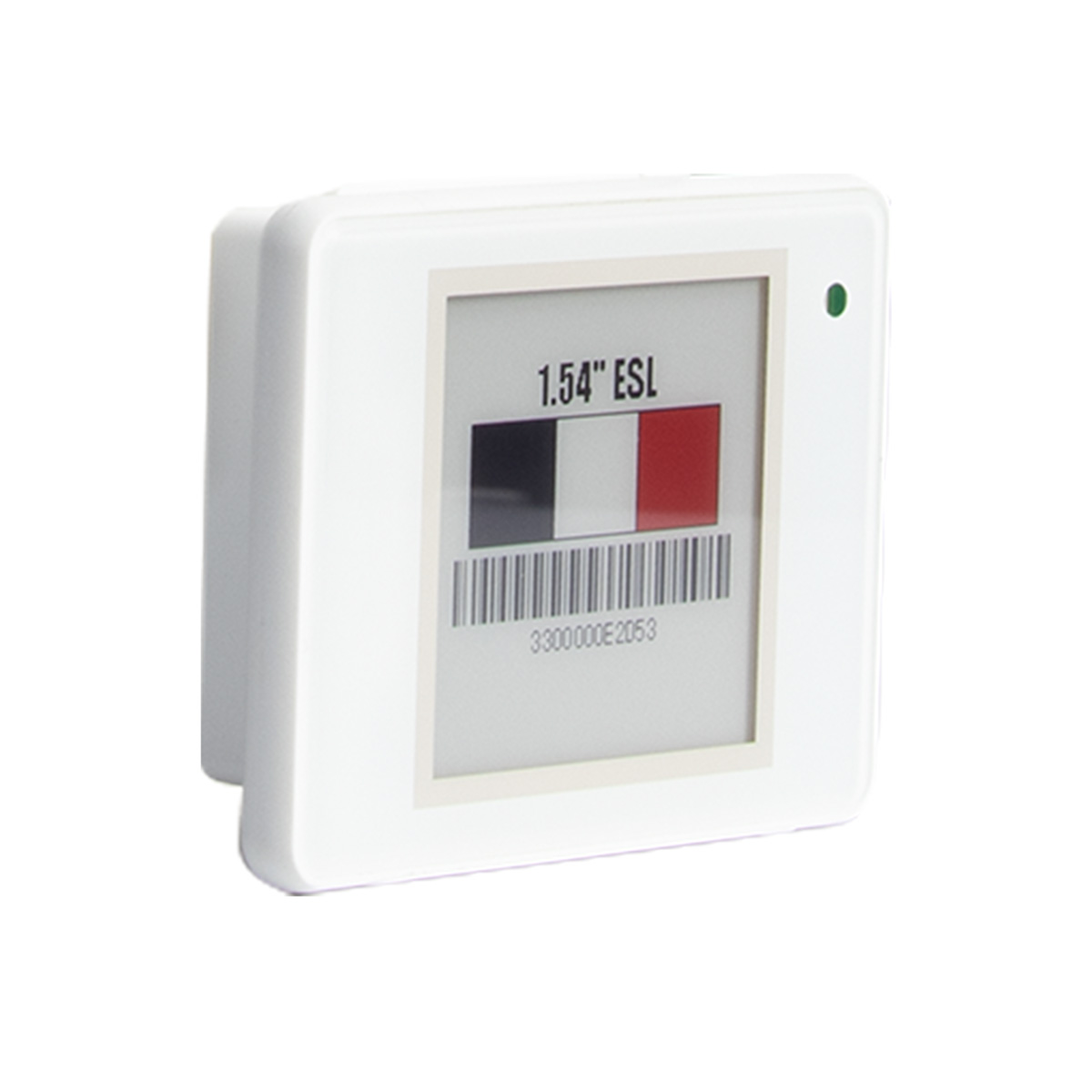

Tri-color Display: Displays black, white, and red content, ideal for highlighting promotions, prices, and alerts.
Ultra-low Power Consumption: Power is only used during content updates, allowing operation for 10 years on a single battery.
High Readability: Reflective screen mimics paper, ensuring excellent legibility even under bright light or sunlight.
Wide Viewing Angle: Over 170° viewing angle ensures clear visibility from multiple directions.
Compact Size: At 1.54 inches, it is ideal for labeling small products, cosmetics, jewelry, or shelf-edge information in retail environments.
Wireless Update Capability: Can be integrated with RF (2.4GHz), BLE, or NFC modules for centralized content updates.
Retail: Electronic price tags, promotional signage
Warehousing: Inventory labeling and logistics
Healthcare: Patient labeling and medication tracking
Smart Offices: Nameplates and meeting room indicators
Product Dimensions (mm) | 49 x 37.62 x 13.3 |
Case Color | Black, White |
Display Color | Black/White/Red |
Display Area (mm) | 27.51 x 27.51 |
Display Resolution (Pixel) | 200 x 200 |
DPI | 188 |
NFC | Support (Optional) |
Multiple Pages | Support 8 pages |
LED | Red, Green, Blue, three primary colors, Support 7 colors |
Operating Temperature | 0°- 40°C |
Ambient Humidity | 45% - 70%RH |
Battery Type | Button Battery |
Battery Life | >10 years |
Waterproofing Level | IP54 |
Certification | CE, RoHS, FCC, MIC |
Communication Frequency Band | 2.400-2.480 GHz, Maximum EIRP ≤ 10mW |
