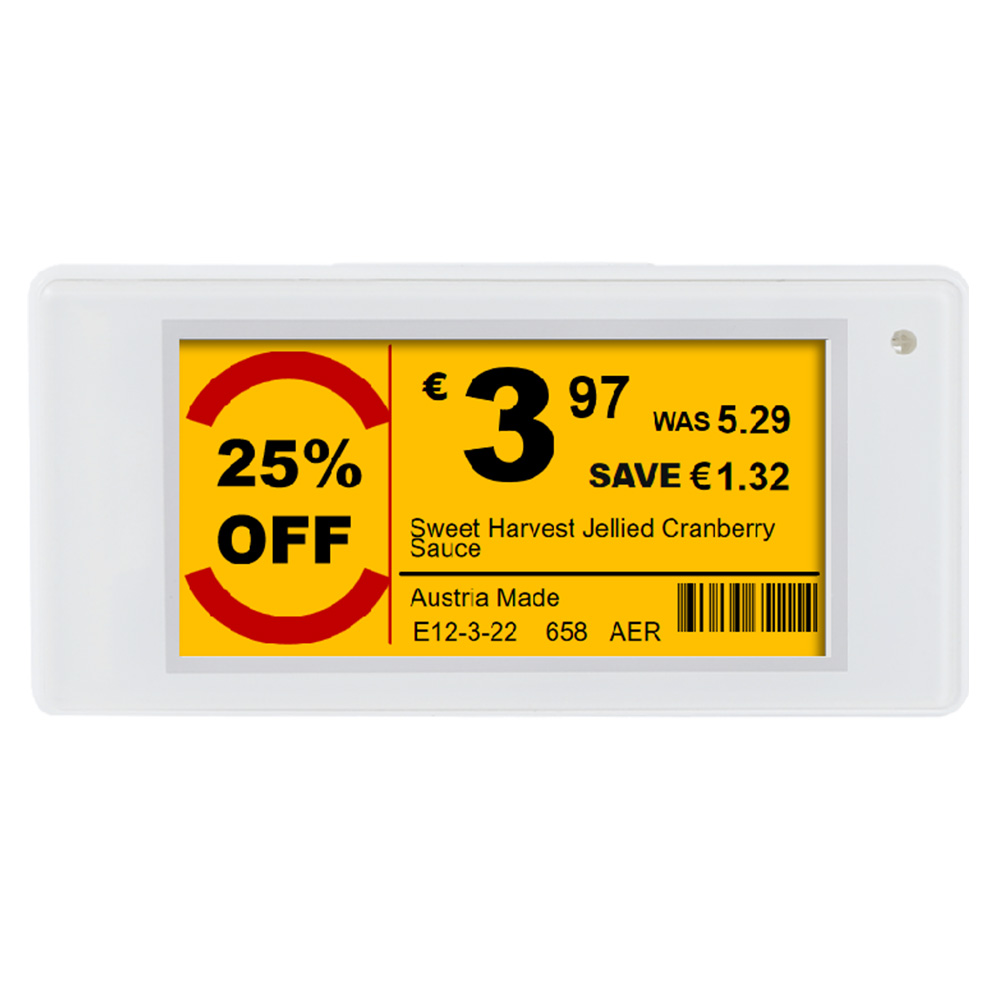

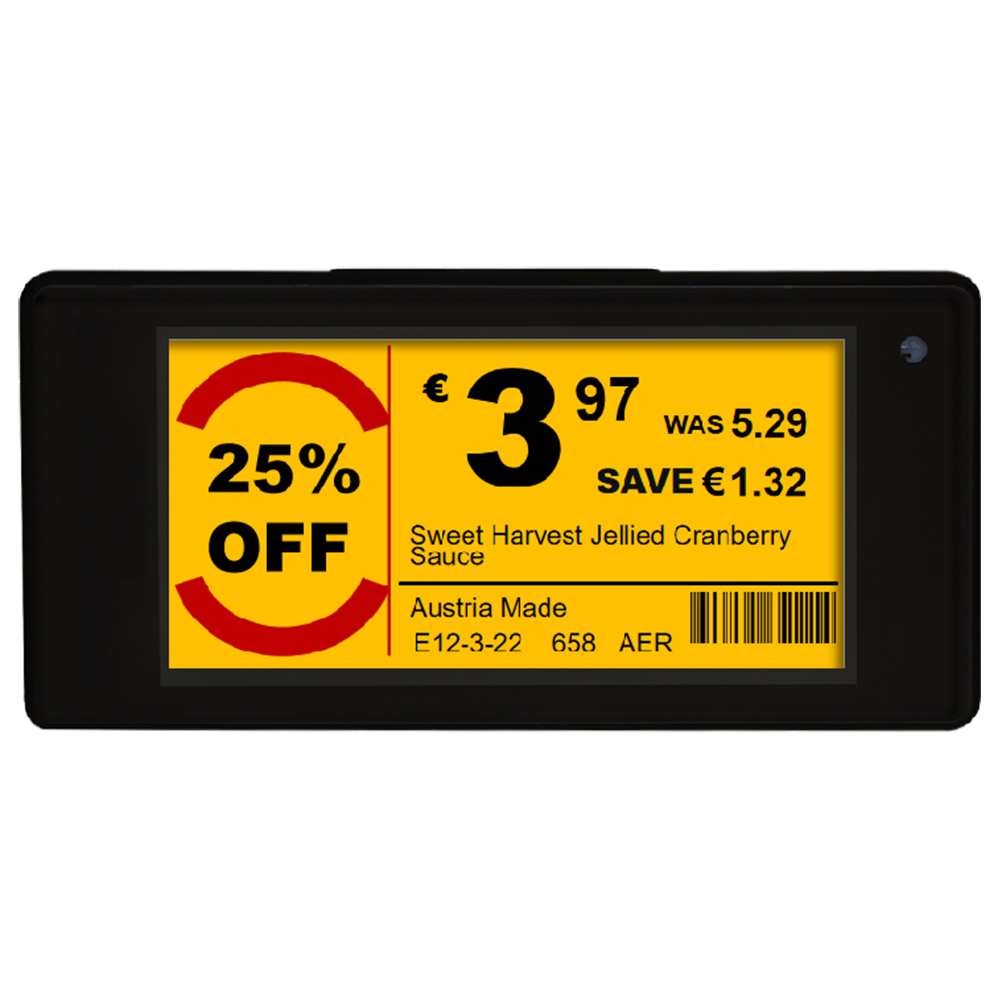

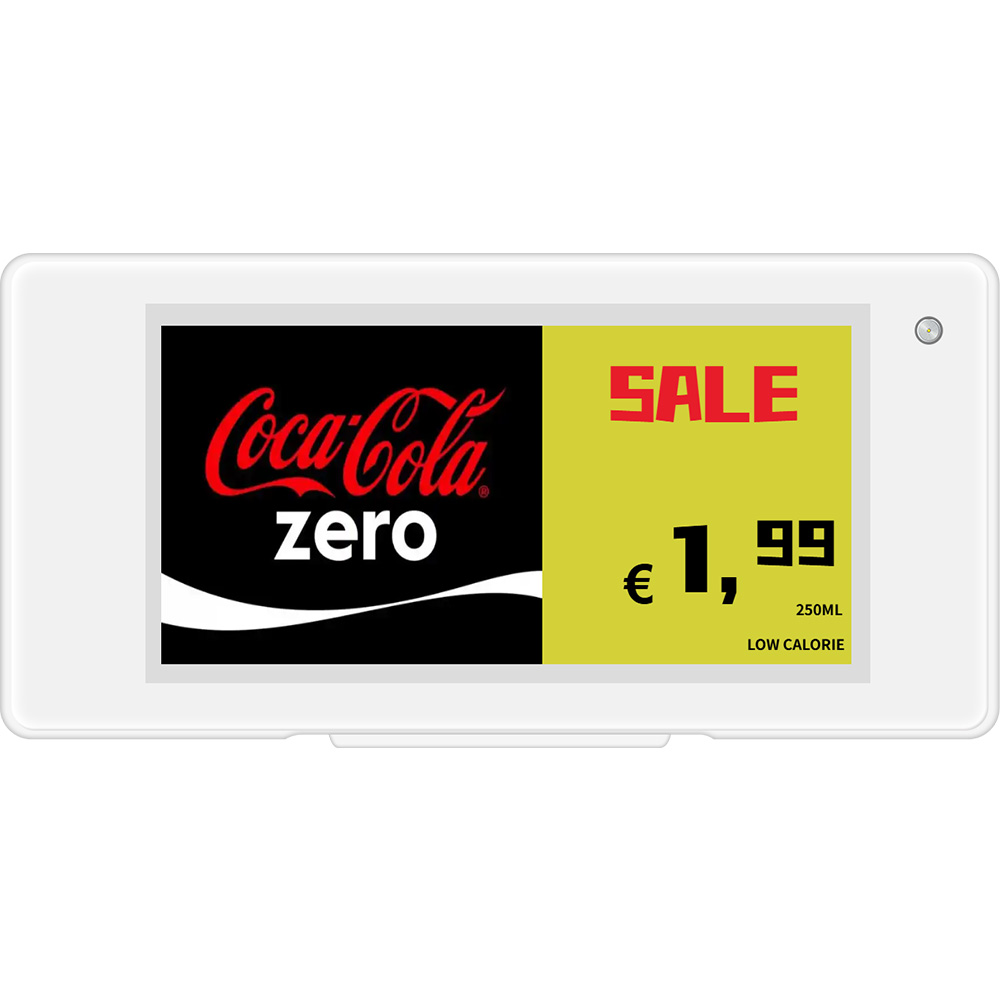

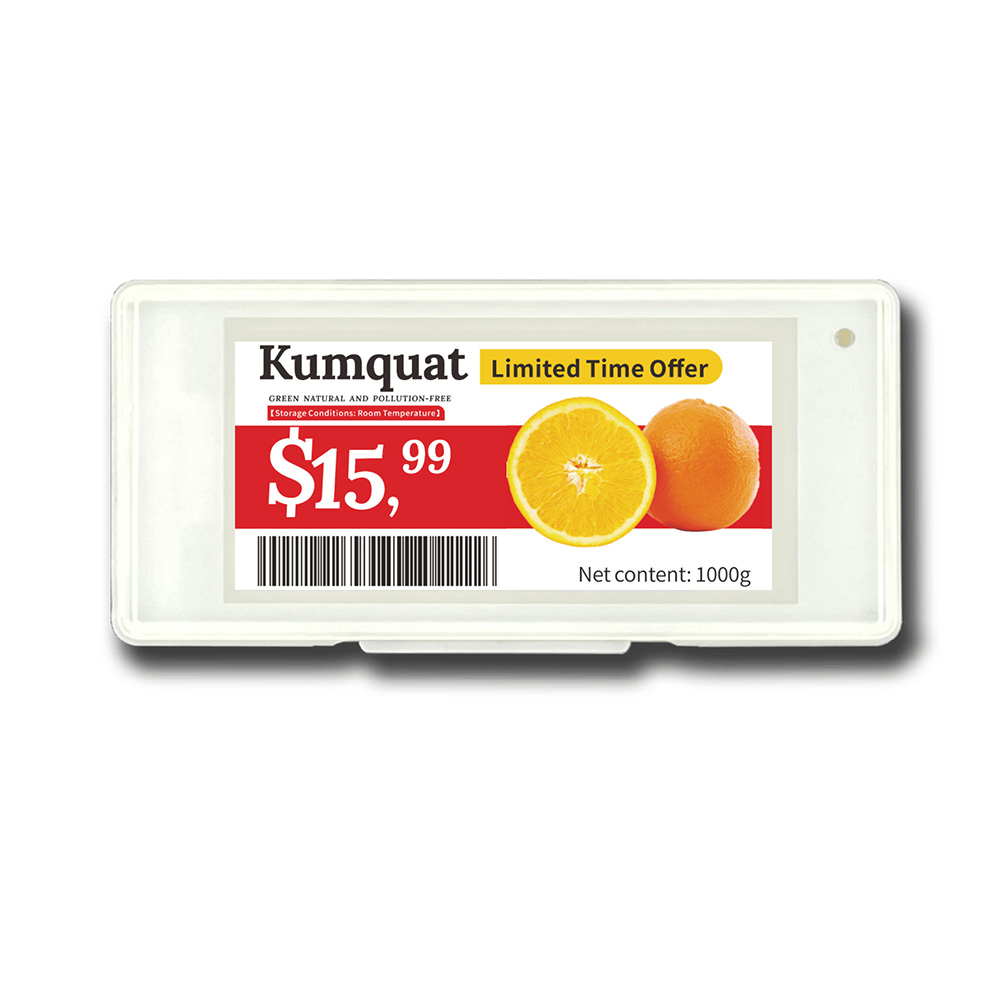

Quad-Color Display (Black/White/Red/Yellow): Offers color-coded messaging for promotions, warnings, discounts, or stock levels — enabling better visual hierarchy than monochrome or tri-color displays.
Compact Yet Clear: The 2.13-inch screen size strikes a balance between compact form factor and space for essential data like price, barcode, SKU, and icons.
Ultra-Low Power Consumption: Draws power only when updating content; supports up to 10 years of battery life.
High Readability: E-paper surface provides excellent clarity and sunlight readability, with a wide viewing angle (>170°) for versatile placement.
Wireless Communication: Supports 2.4GHz RF, BLE, or NFC for seamless remote updates via gateway or handheld terminals.
Retail Stores: Price tags, promotional labels, discount indicators
Supermarkets: Category tags, multi-SKU labeling, markdown notifications
Pharmacy & Healthcare: Color-coded medication labels, patient ID displays
Warehousing & Logistics: Shelf/bin labels with status indicators
Product Dimensions (mm) | 71.28 x 34.78 x 12.3 |
Case Color | Black, White |
Display Color | Black/White/Red/Yellow |
Display Area (mm) | 48.55 x 23.71 |
Display Resolution (Pixel) | 250 x 122 |
DPI | 130 |
NFC | Support (Optional) |
Multiple Pages | Support 8 pages |
LED | Red, Green, Blue, three primary colors, Support 7 colors |
Operating Temperature | 0°- 40°C |
Ambient Humidity | 45% - 70%RH |
Battery Type | Button Battery |
Battery Life | >10 years |
Waterproofing Level | IP54 |
Certification | CE, RoHS, FCC, MIC |
Communication Frequency Band | 2.400-2.480 GHz, Maximum EIRP ≤ 10mW |
