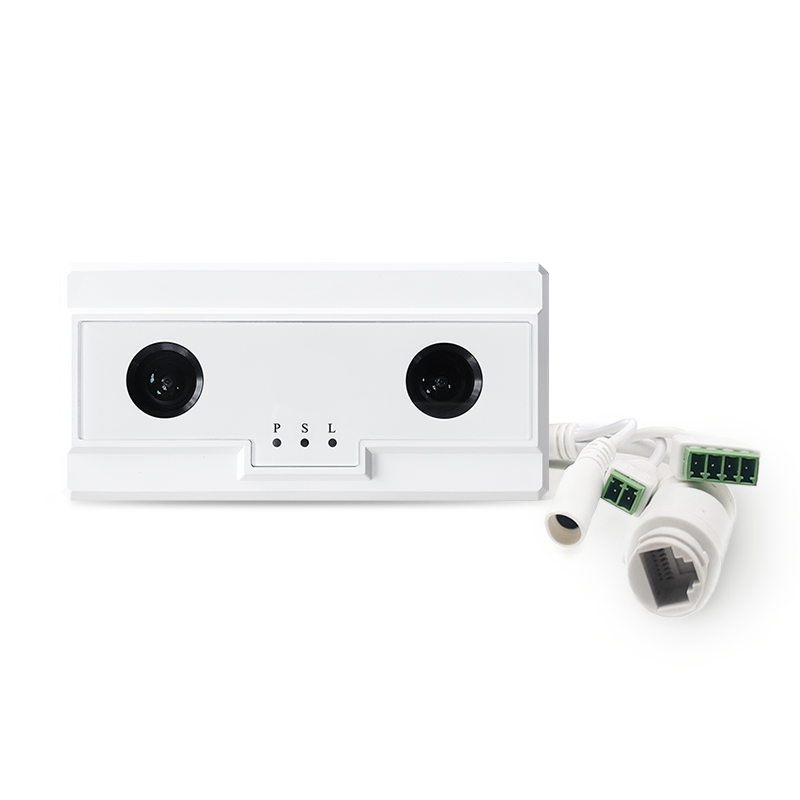

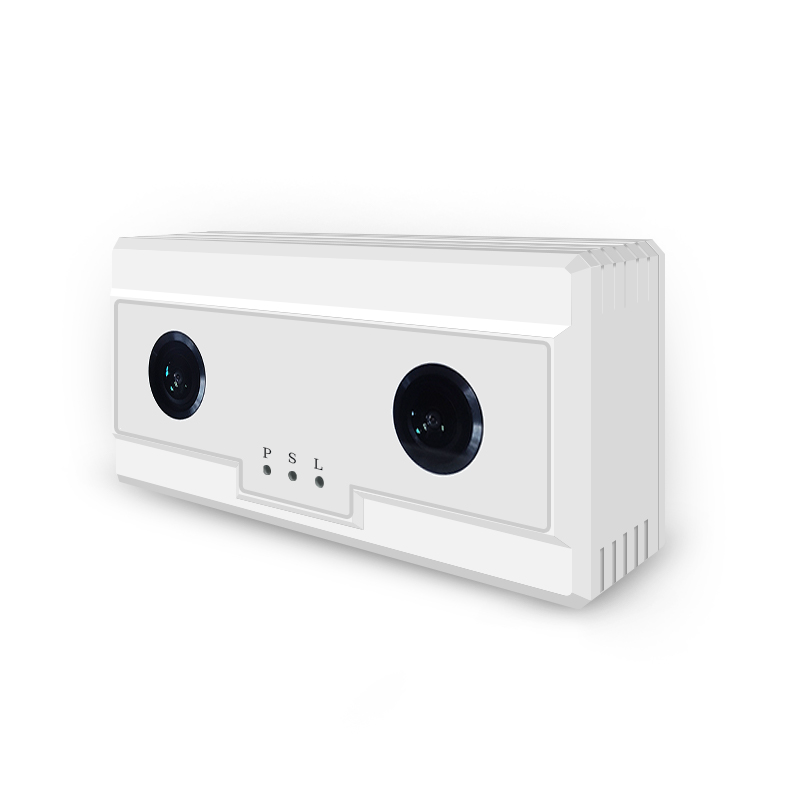

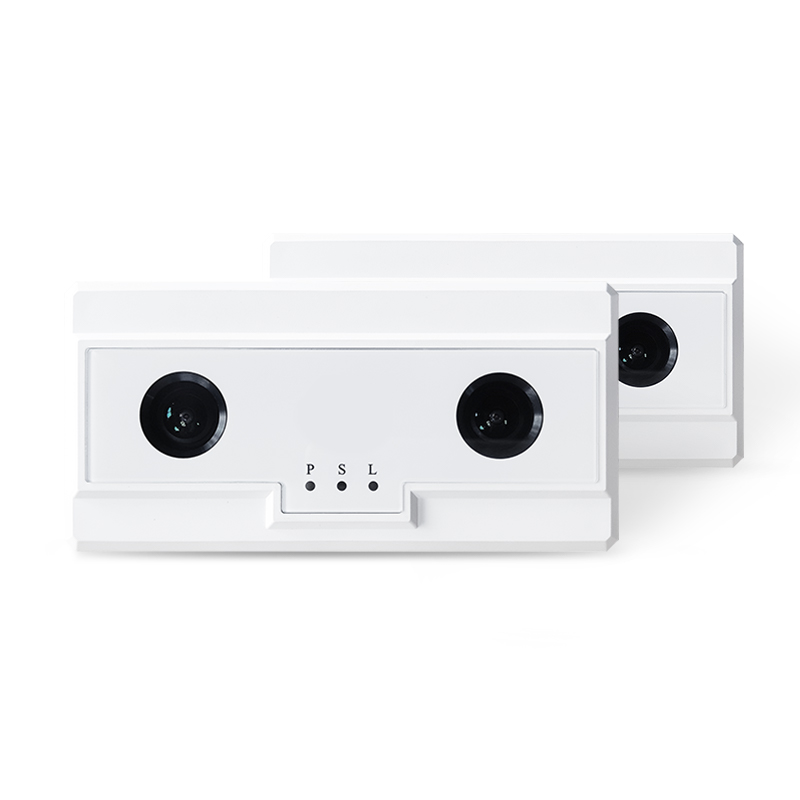

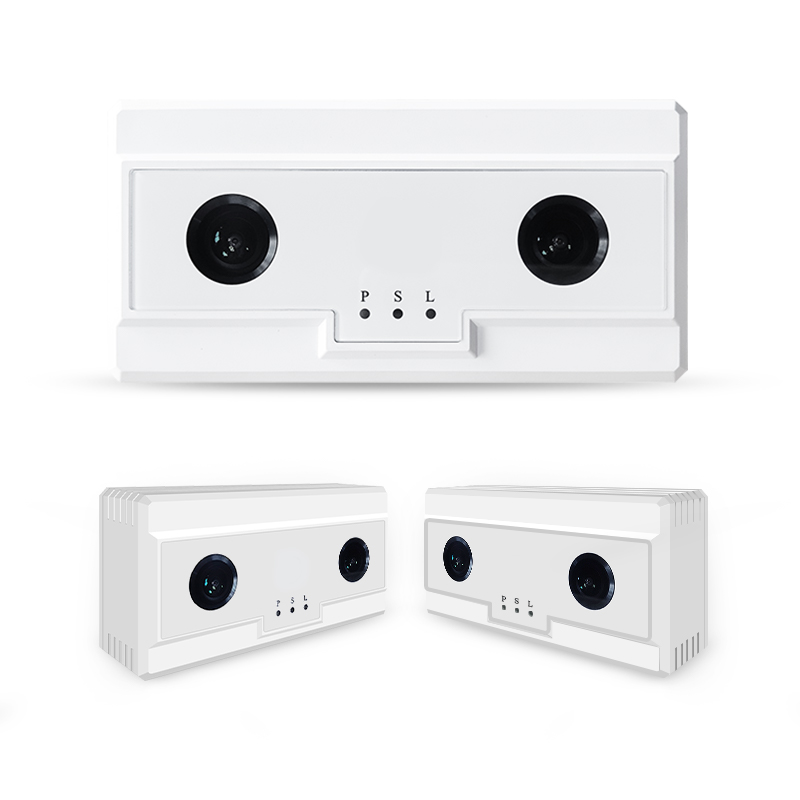

3D AI People Counter Camera

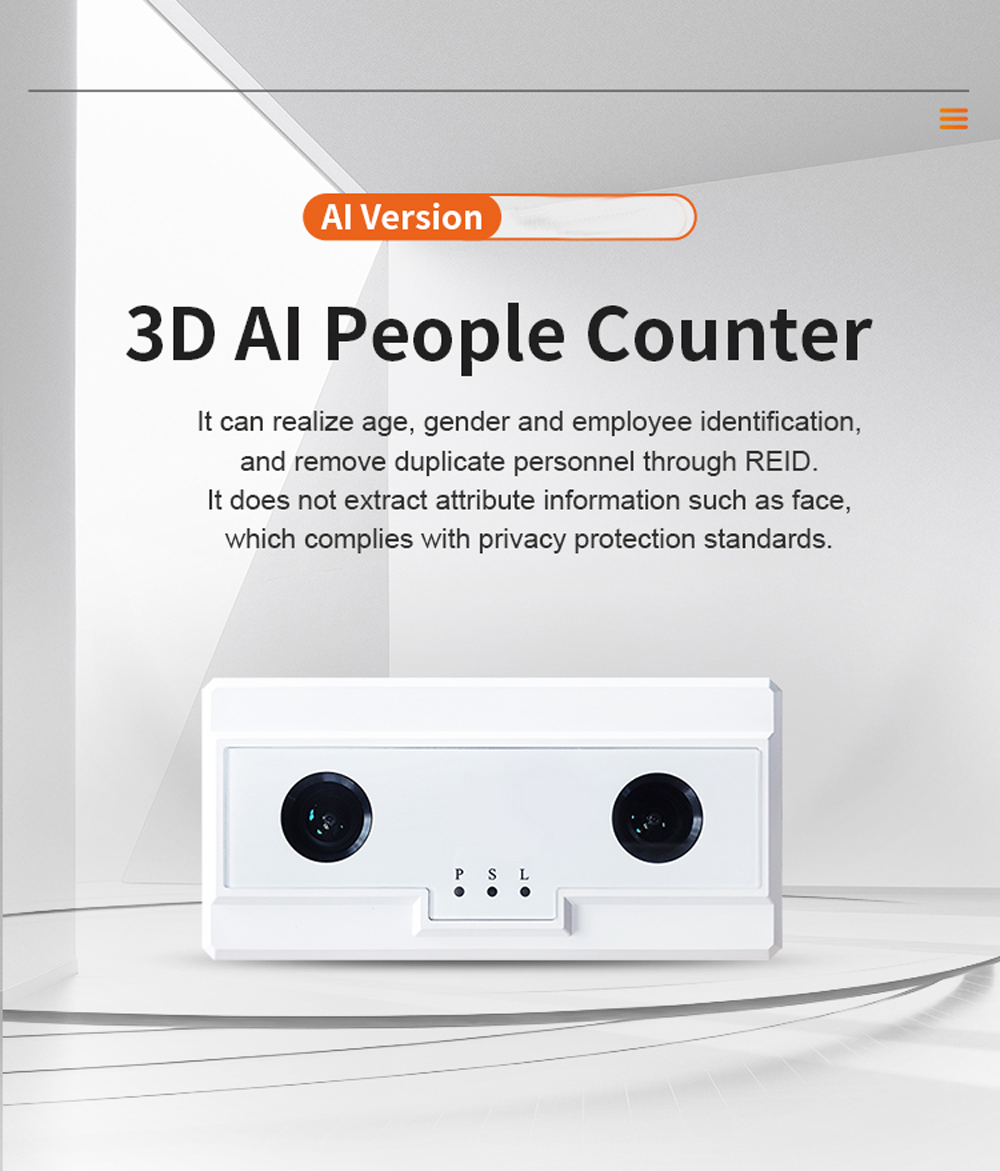

The 3D AI people counter (AI version) uses high-precision 3D imaging technology and can count the number of people in real time with an accuracy rate of up to 99%. The built-in AI algorithm can identify the number of people entering, exiting, passing, staying, and returning, as well as gender, age, and other data collection to generate richer crowd portraits and conduct deeper data analysis.
Key Features:

Performance: Intelligent dual-core architecture achieves 20% energy efficiency improvement and supports synchronous multi-modal data processing.

Computing power: 2 TOPS heterogeneous computing power engine, real-time AI inference speed reaches millisecond response.

Storage: 1GB LPDDR4 intelligent cache technology, data throughput efficiency increased by 50%.

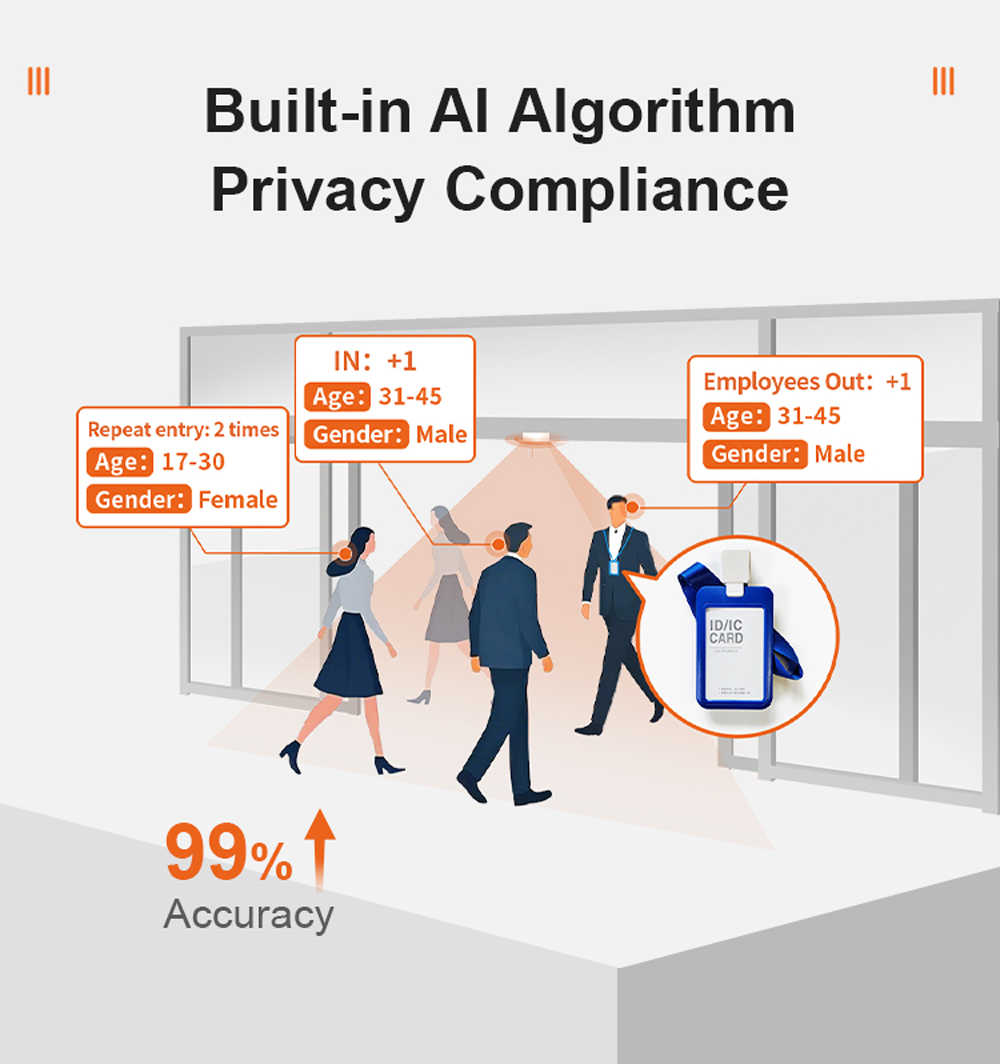

Built-in AI algorithm: can realize age recognition and gender recognition, generate richer crowd portraits, and conduct deeper data analysis.

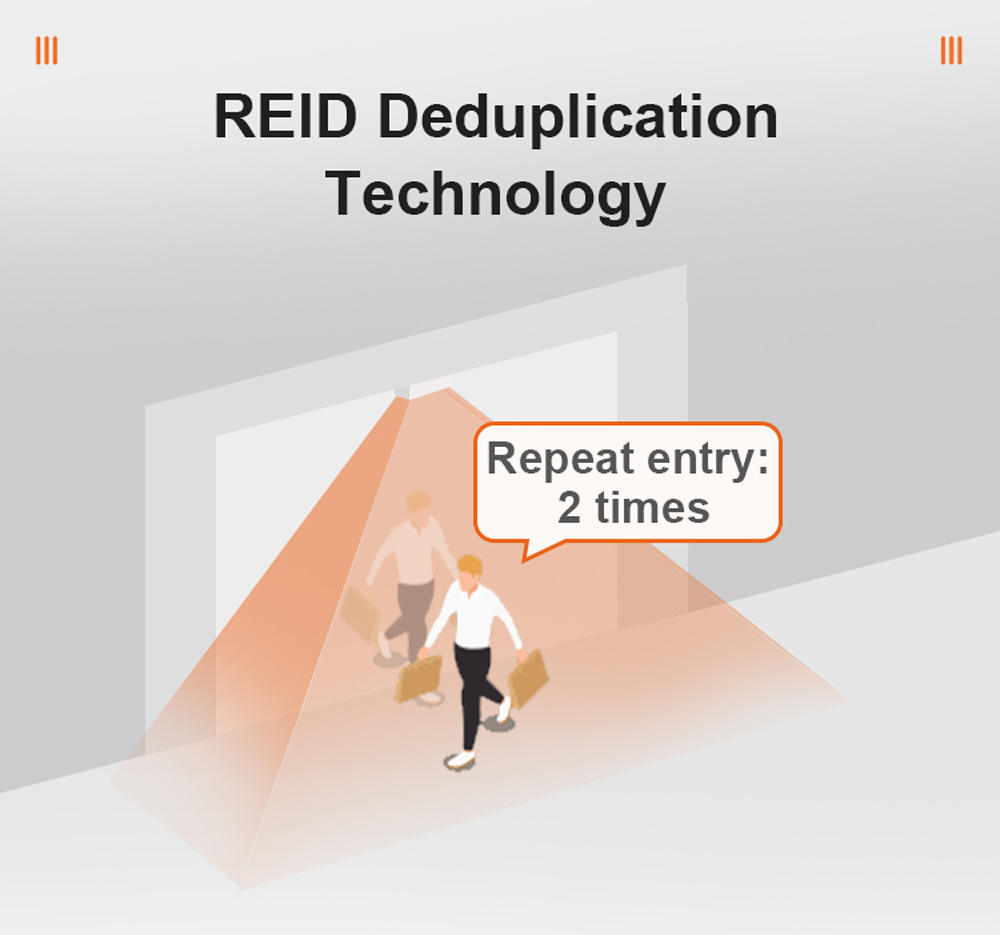

REID deduplication: through the deep learning model of human features, it can realize the removal of repeated counts of the same person entering and leaving or staying multiple times in a day.

Real-time and accurate statistics: real-time and accurate identification of human bodies, with an accuracy rate of up to 99%, accurately filtering children and other large objects.

Employee identification: can accurately filter employee entry and exit data through employee badge identification to avoid data interference.

Strong environmental adaptability: adapt to outdoor scenes with strong sunlight, scenes with decorative lights at the door, and scenes with dim light and darkness.

Automatic zoom: supports software automatic zoom, the device supports installation height range of 1.9-6m, and can adapt to different installation environments.

Wide area coverage: the coverage range is 1.1-8.4 meters, which can easily adapt to various places.

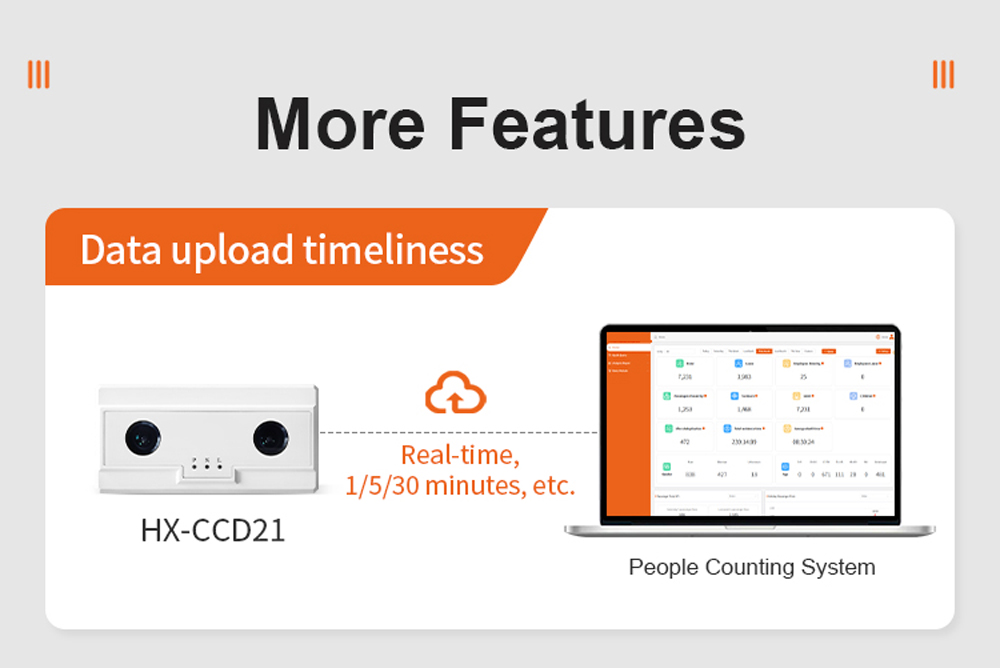

Data upload timeliness: the data upload server time can be customized, and can support real-time, 1 minute, 5 minutes, 30 minutes, etc.

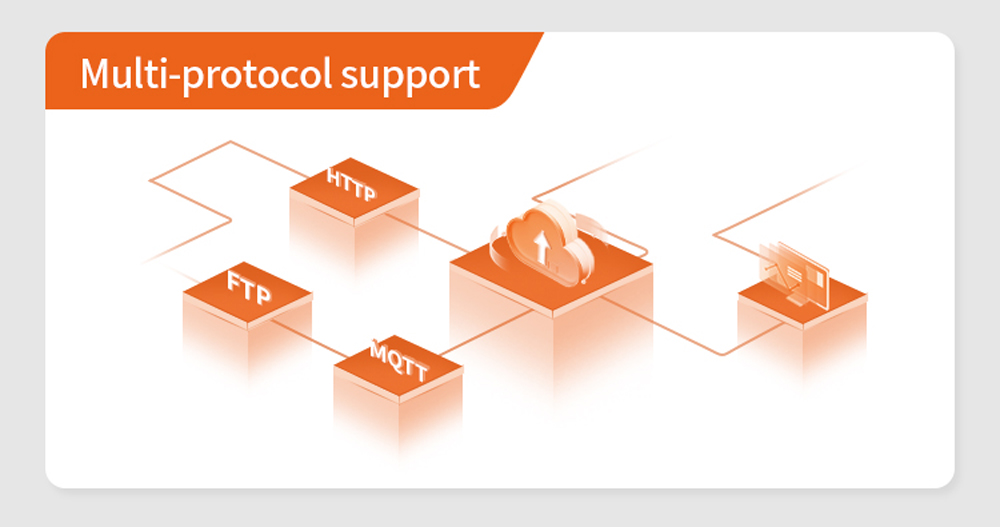

Multi-protocol support: The device provides HTTP POST/HTTPS POST/FTP/SFTP/MQTT protocol data transmission, and supports secondary development data docking of the device.

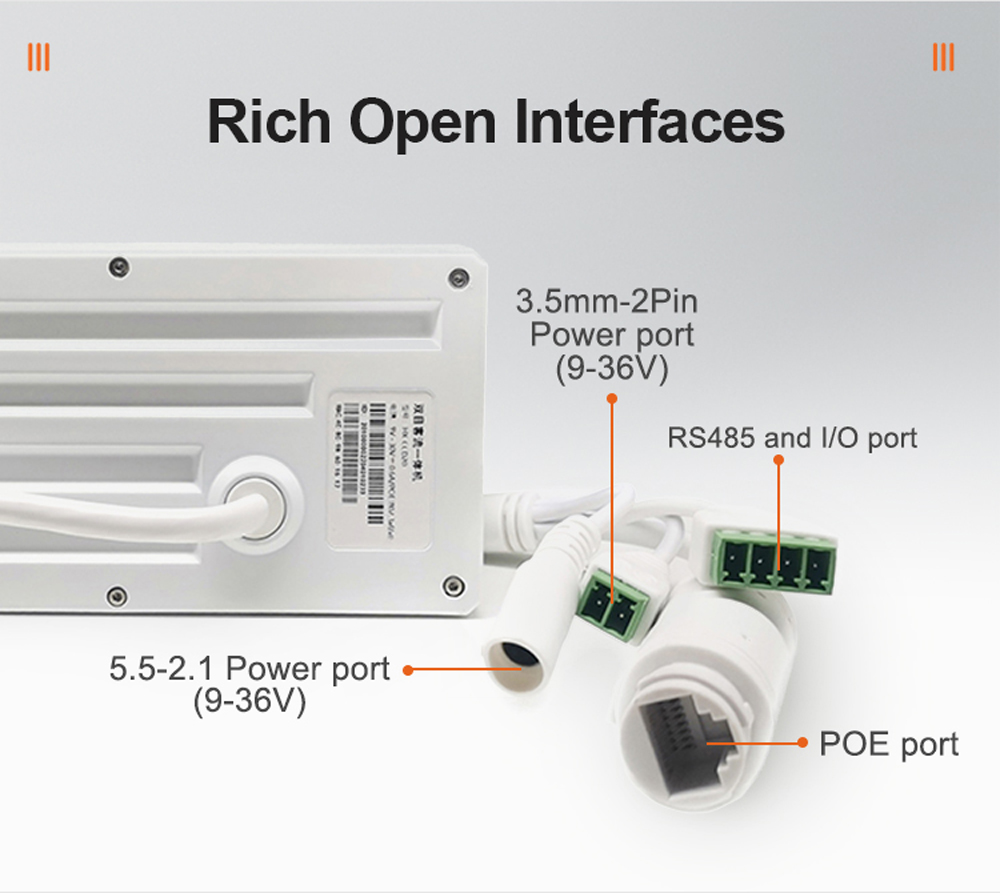

Rich open interfaces: The device has rich local open application interfaces and RS-485 expansion support, so developers can integrate and develop flexibly and quickly.

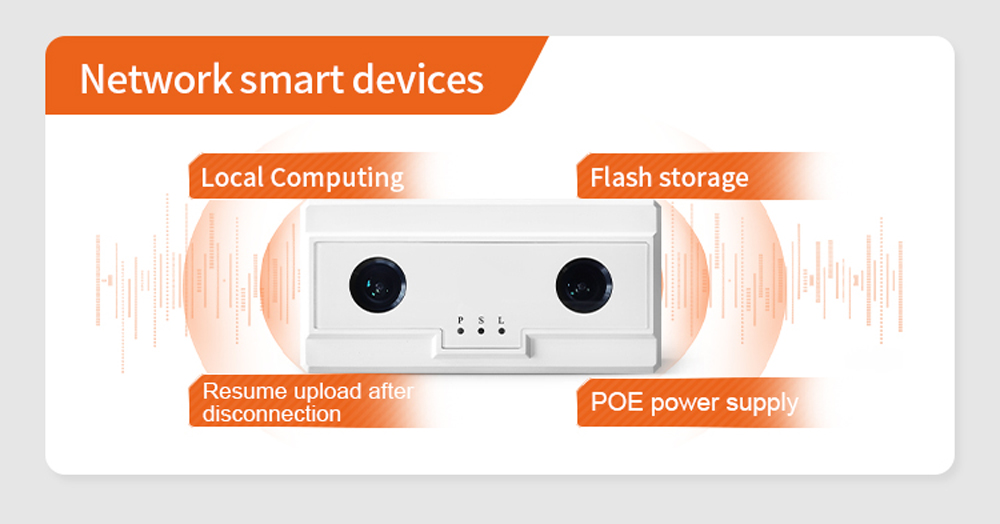

Network intelligent device: supports local computing, no local server required, flash offline storage, network disconnection and resuming, Poe power supply, and wired/wireless connection.

Privacy compliance: complies with privacy protection specifications, does not extract attribute information such as face, and protects privacy.

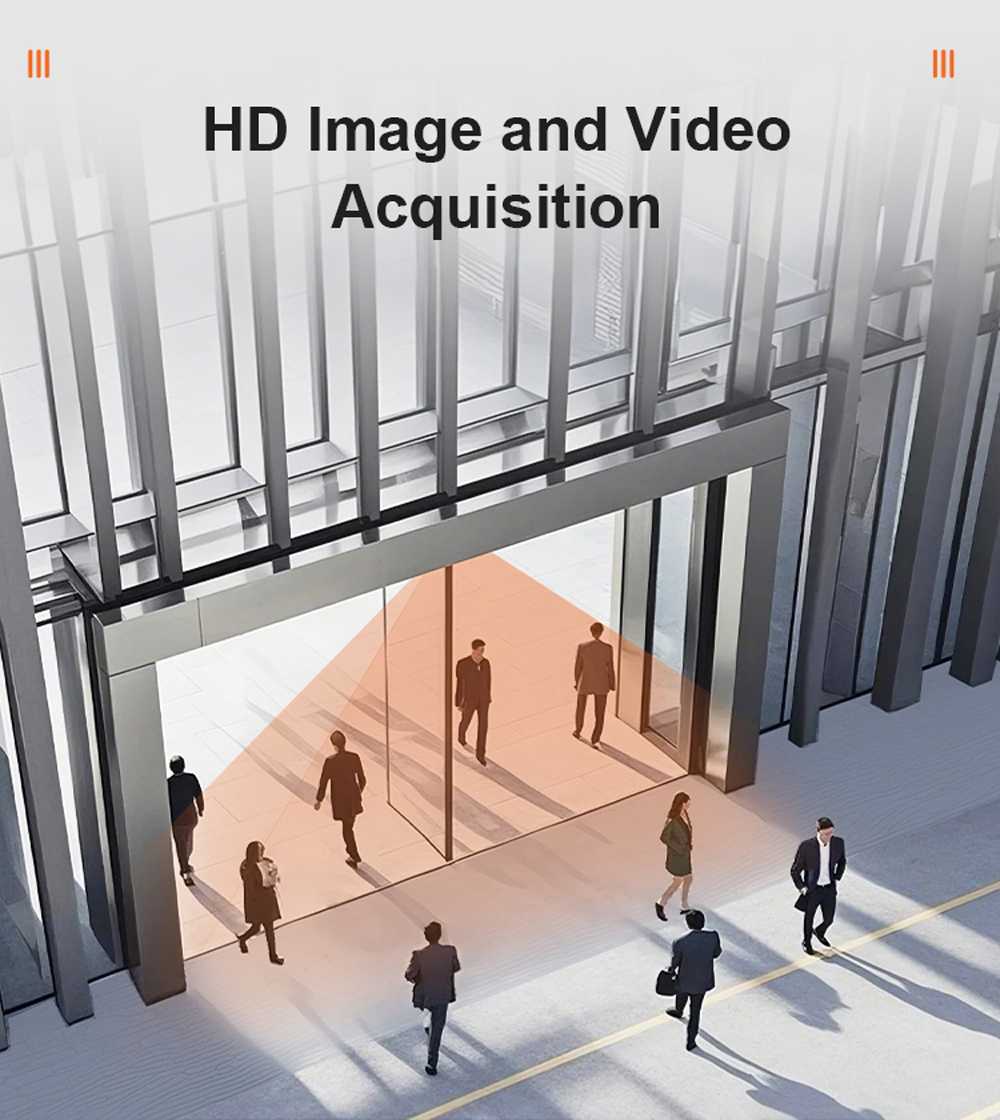

High-definition image and video acquisition: equipped with a 2-megapixel imaging system, it can obtain high-definition, color image and video data.

Scene mode: wheelchair mode, limited mode, child mode, control mode, data display mode, channel mode, stand-alone mode.

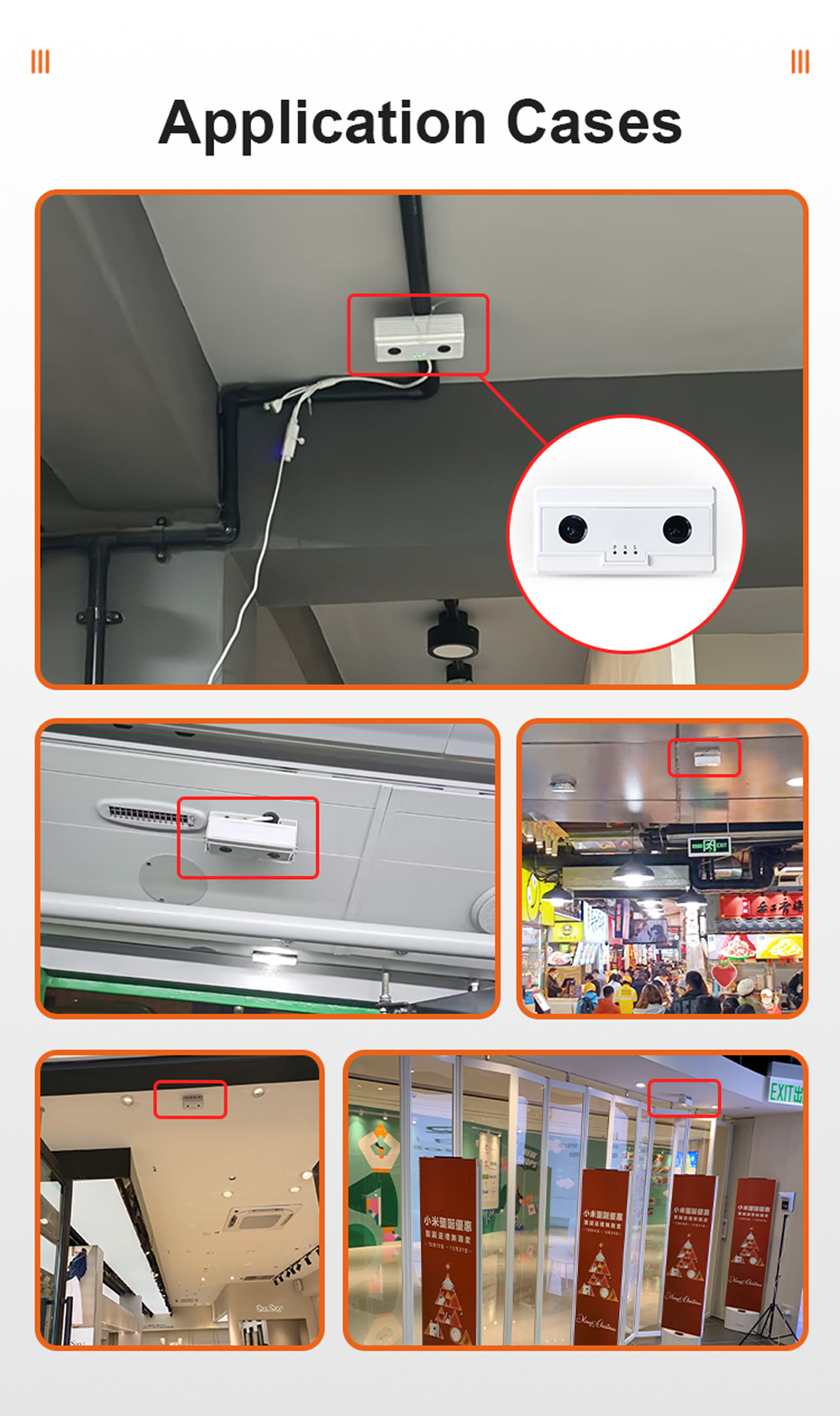

Applications:

It can be widely used in shopping malls, retail stores, public transportation buses, scenic spots, libraries, museums, restaurants, factories, supermarkets, parks, buildings, toilets, etc.

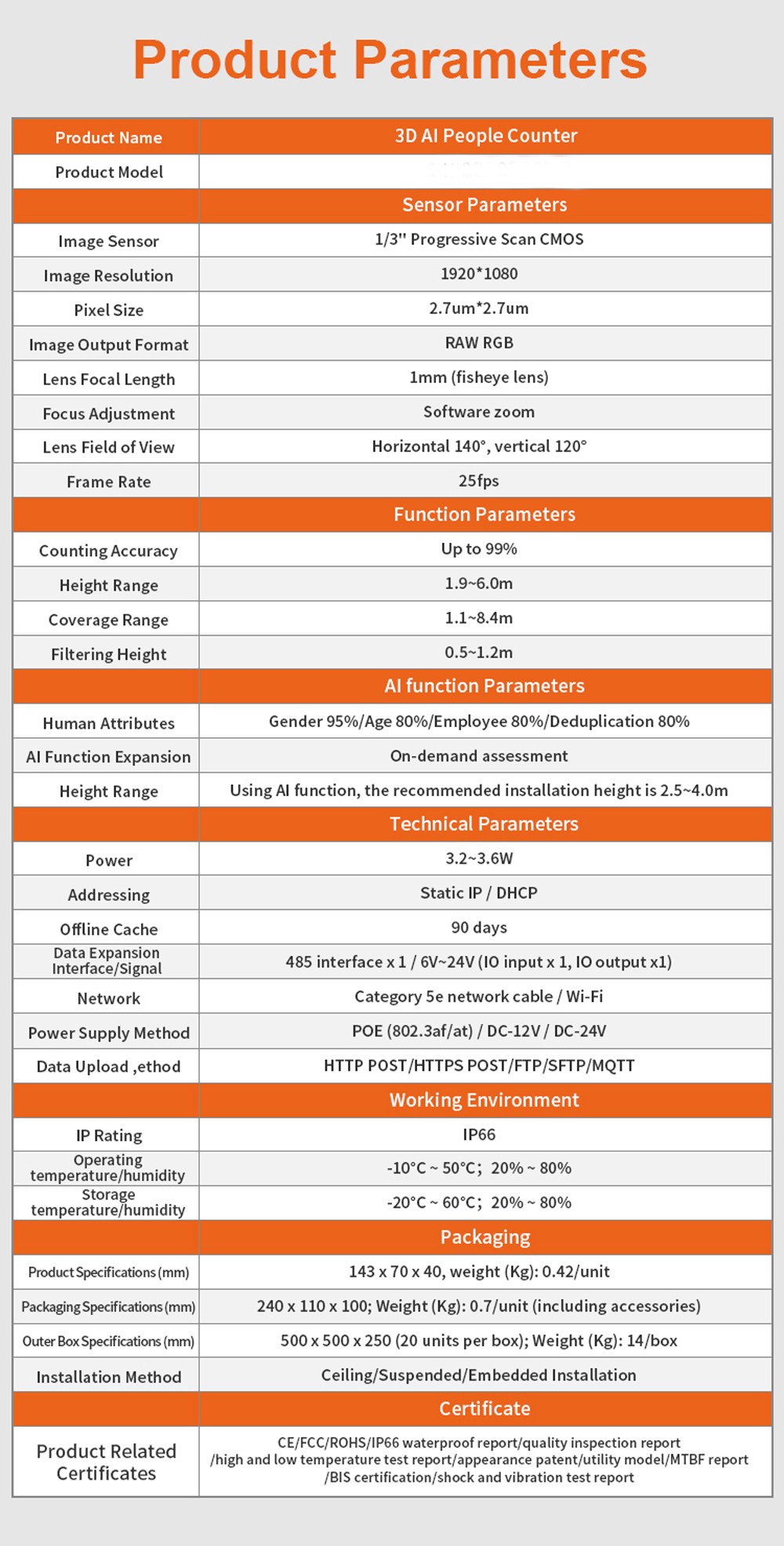

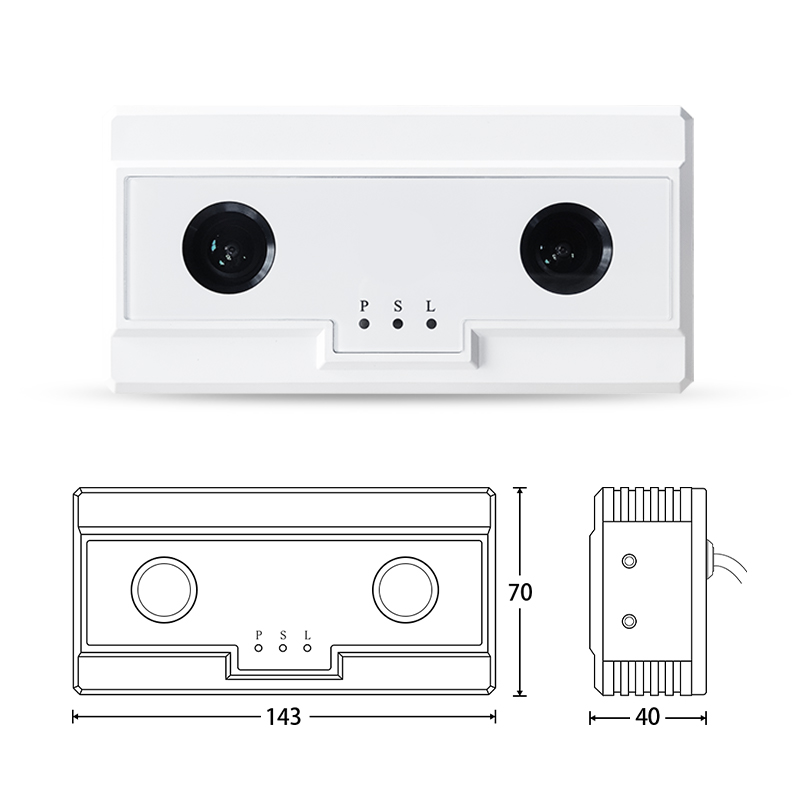

Specification

CCD21详情页---英文---少字-新-中性版_04
