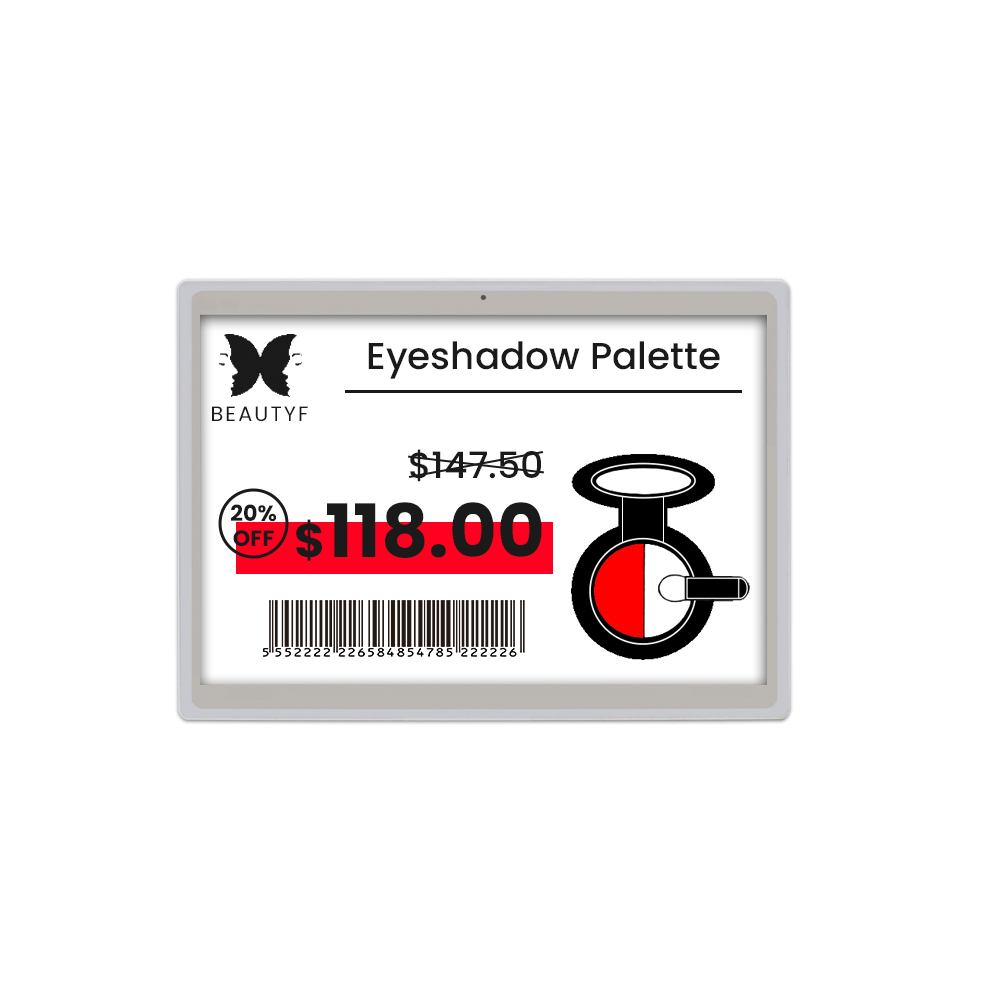

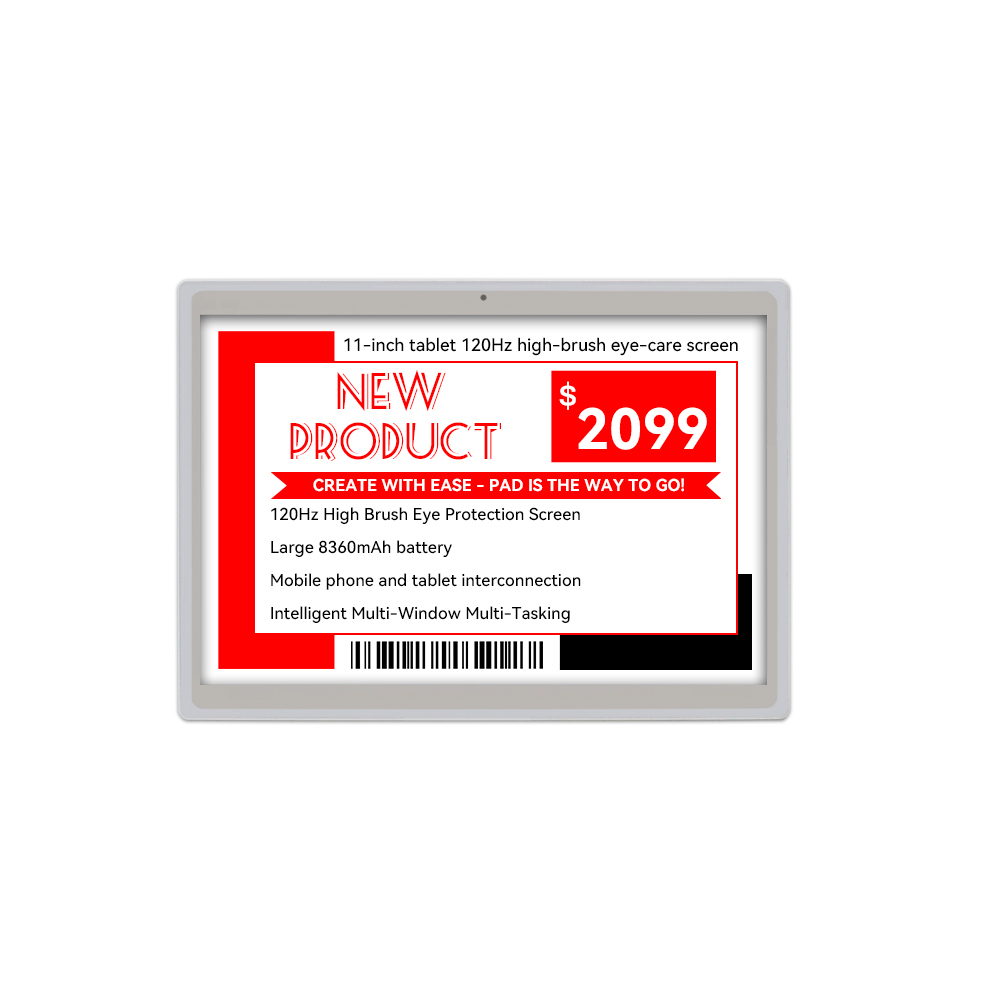

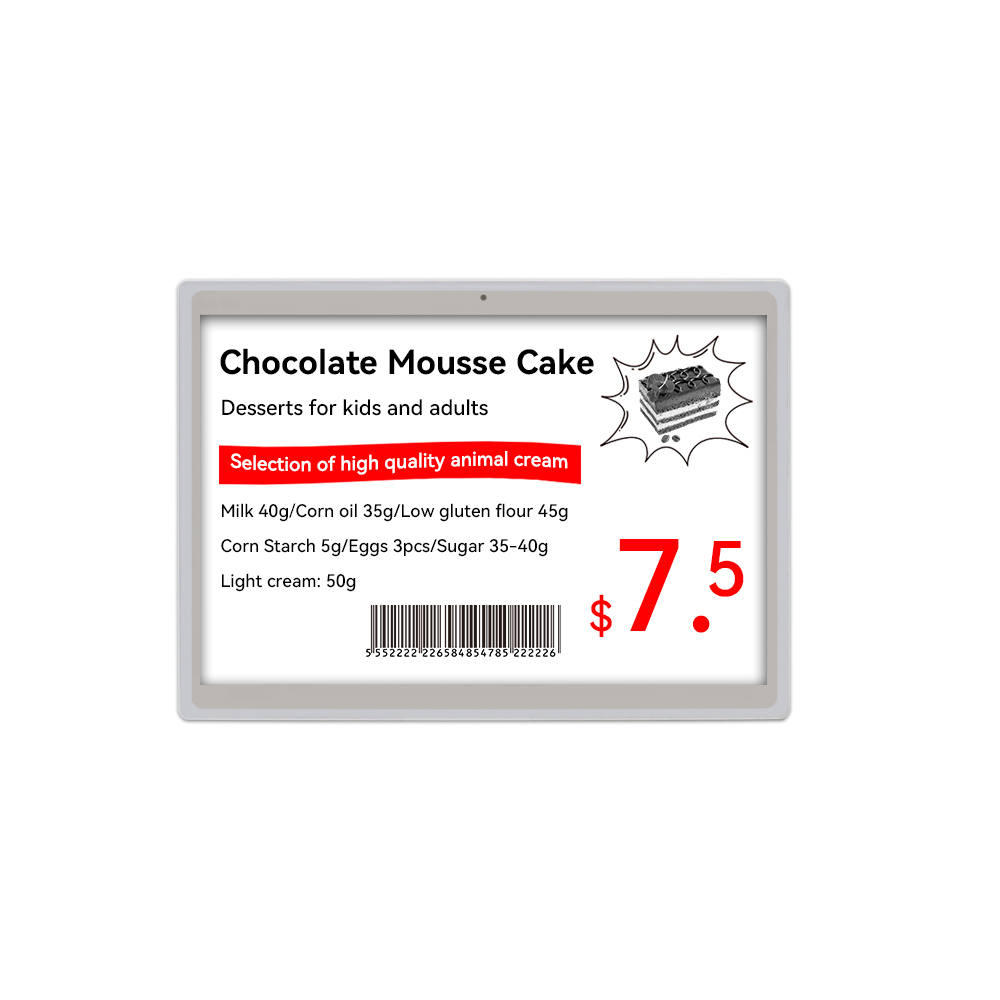

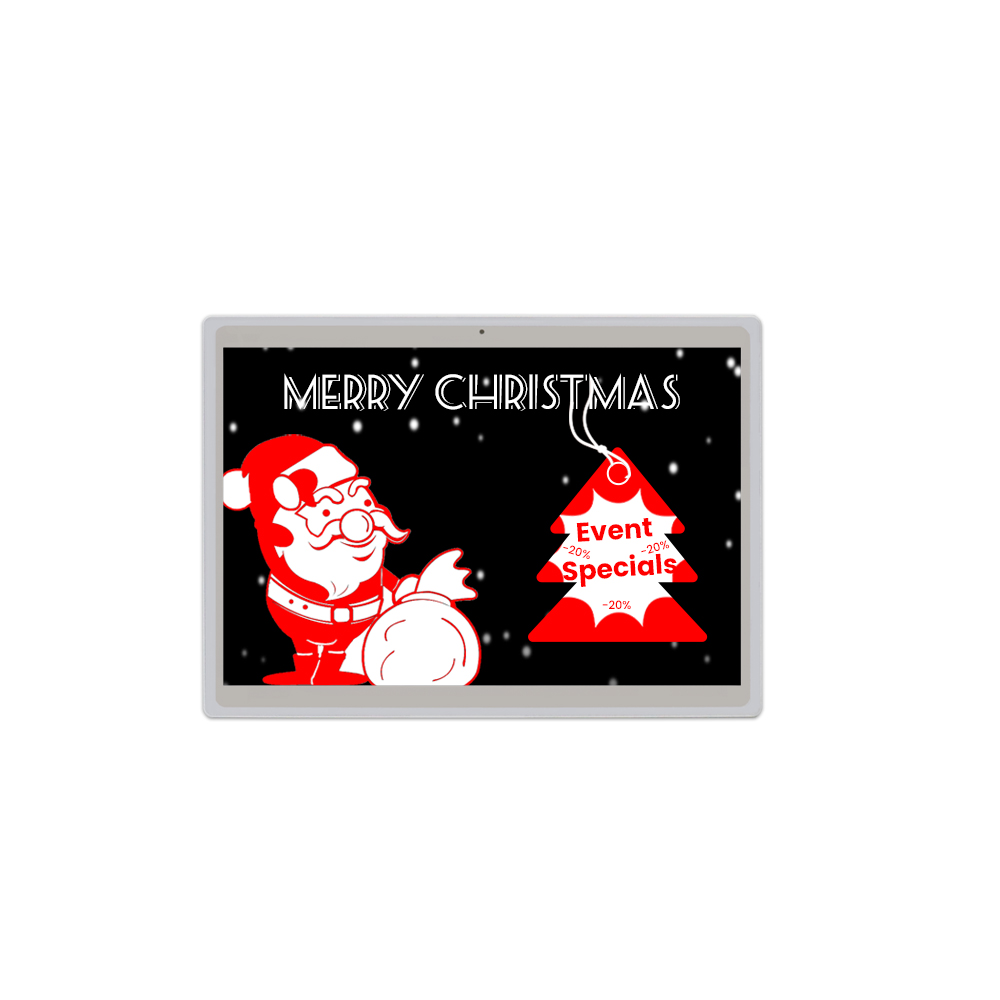

10.2-Inch B/W/R E-Paper Door Signage
The 10.2-inch B/W/R e-paper door signage is a modern digital display panel ideal for meeting rooms, offices, hospitals, classrooms, and hotel room identification. With its three-color E-Ink screen, this signage solution provides clear, elegant, and paper-like readability with ultra-low power consumption.
Key Features:

E-Ink Display (B/W/R):
Clear, glare-free 10.2-inch display with black, white, and red colors for enhanced contrast and emphasis

Resolution & Visibility:
High-resolution screen with wide viewing angle for easy reading from any direction

Wireless Update Options (based on model):
Supports BLE update methods depending on configuration

Battery-Powered or Wired:
Can run on coin cell or rechargeable batteries (lasting 1–3 years) or be connected via USB/power adapter for permanent installations

Energy Efficient:
Consumes power only when content is updated — ideal for static or infrequently changed information

Customizable Display Layout:
Text, images, logos, QR codes, room numbers, and status indicators (e.g., In Use / Available)

Applications:

Meeting Room Signage – Show meeting schedules, booking status

Hotel Room Info Panels – Display guest names, cleaning status

Hospital Room Labels – Update patient info or alerts digitally

Classroom Door Signs – Timetable and class occupancy

Office Desk/Department Labels – Identify workspaces or team members

Specification

Product Dimensions (mm)

281.3 x 229 x 17.8

Case Color

Black, White

Display Color

Black/White/Red

Display Area (mm)

252.976 x 190.896

Display Resolution (Pixel)

1304 x 984

DPI

131

NFC

Support (Optional)

Multiple Pages

Support 8 pages

LED

Red, Green, Blue, three primary colors, Support 7 colors

Operating Temperature

0°- 40°C

Ambient Humidity

45% - 70%RH

Battery Type

Button Battery

Battery Life

>10 years

Waterproofing Level

IP54

Certification

CE, RoHS, FCC, MIC

Communication Frequency Band

2.400-2.480 GHz, Maximum EIRP ≤ 10mW
