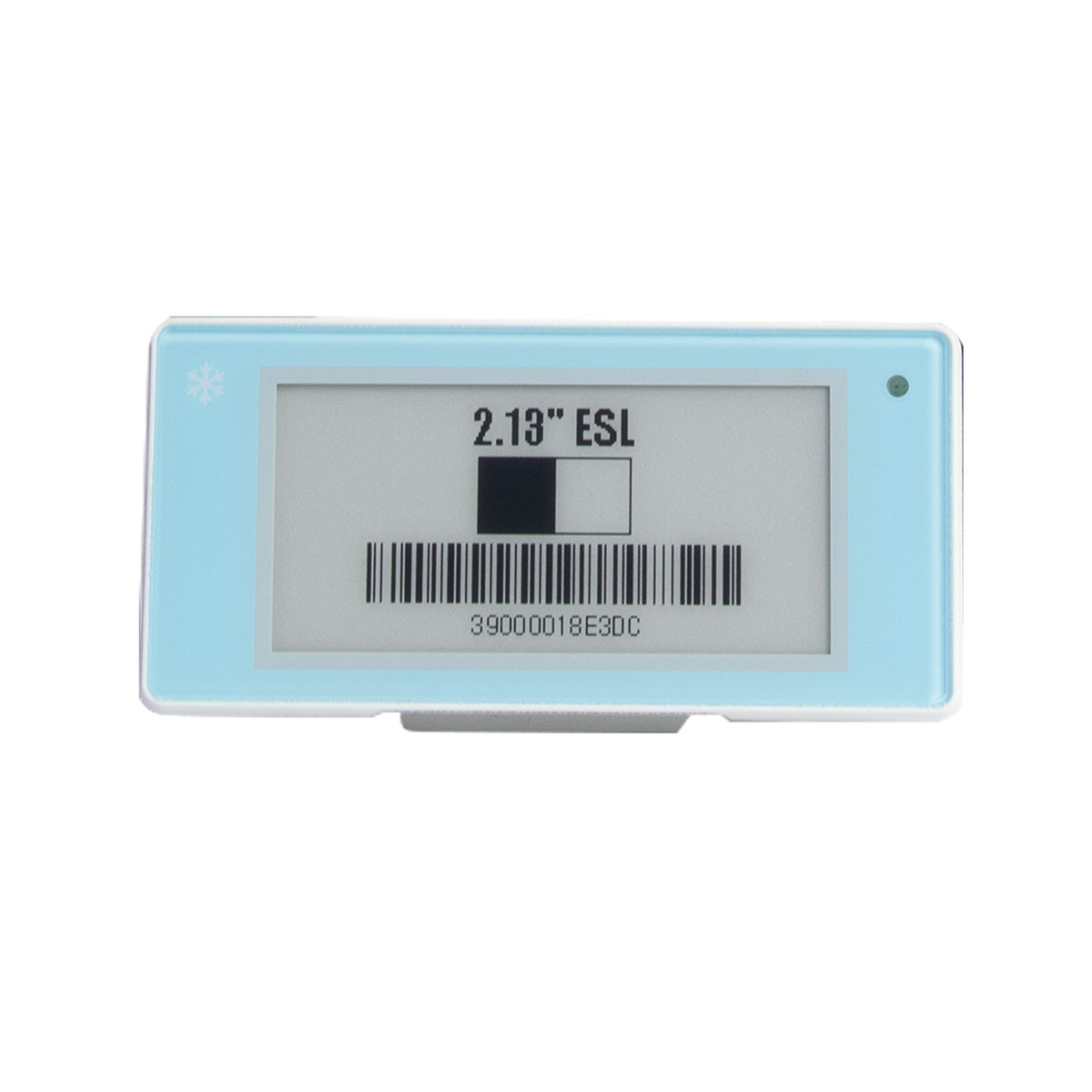

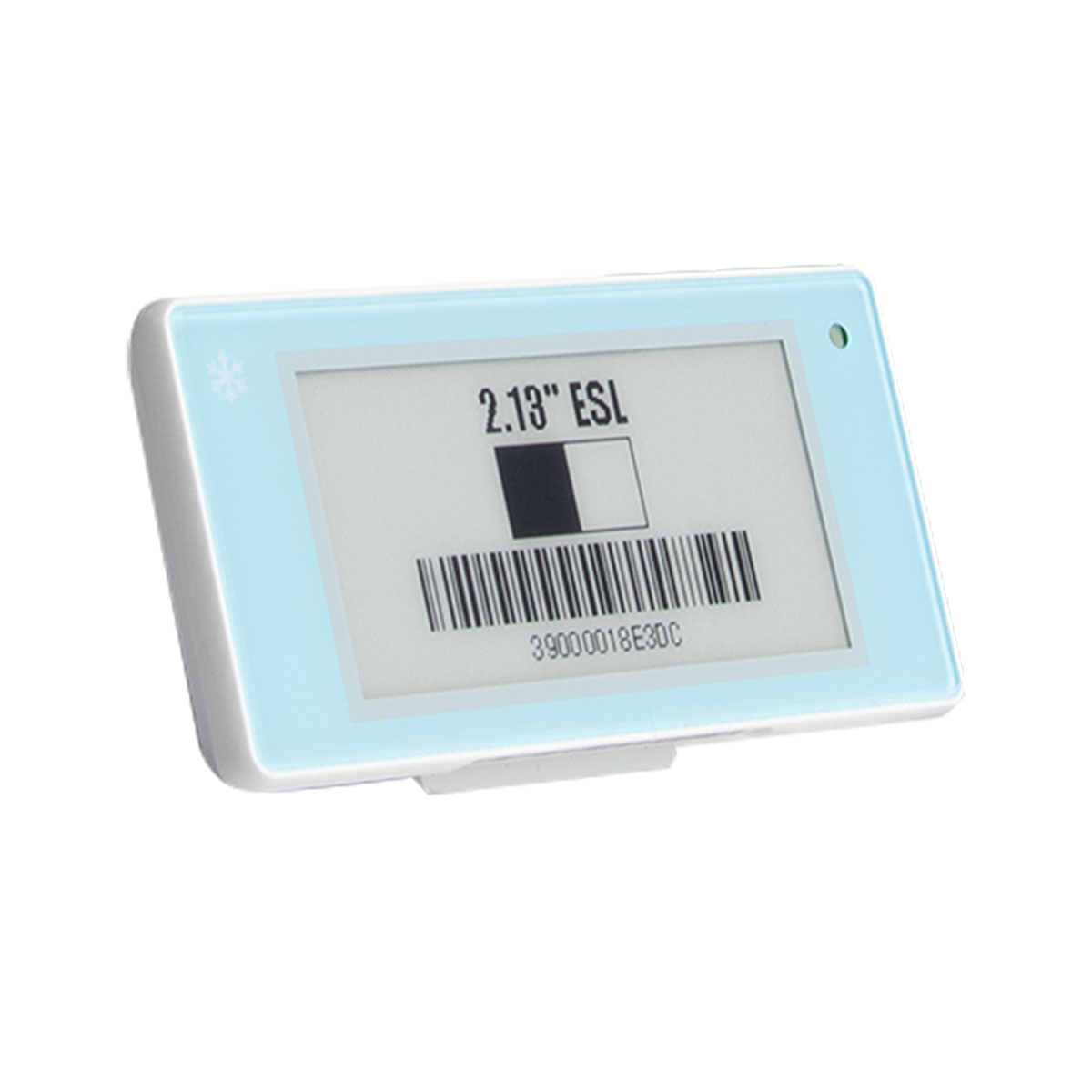

2.13 inch B/W Low Temperature ESL
The 2.13-inch Black/White Low Temperature Electronic Shelf Label (ESL) is a compact and robust e-paper display specifically designed to operate reliably in cold environments such as refrigerated retail, cold chain logistics, and pharmaceutical storage. With E Ink black and white technology, it offers excellent readability, minimal power usage, and durability in sub-zero conditions.
Key Features:

Low Temperature Operation: Specially engineered to work in temperatures as low as -25°C, making it ideal for freezers, cold rooms, and refrigerated display shelves.

High-Contrast Black and White Display: Ensures clear visibility of text, pricing, barcodes, and graphics even under cold and dim conditions.

Ultra-Low Power Consumption: Consumes power only when updating content, enabling long battery life even in harsh environments.

Compact Design: The 2.13-inch size is well-suited for individual product labels, narrow shelves, and small packaging.

Wide Viewing Angle: Reflective E Ink display offers >170° viewing angle and paper-like readability under both natural and artificial lighting.

Wireless Connectivity: Compatible with RF (2.4GHz), BLE, or NFC for real-time content updates and integration into ESL management systems.

Applications:

Frozen Food Retail: ESL for freezer aisles and refrigerated display units

Cold Chain Logistics: Dynamic labeling for cold storage warehouses or transport bins

Pharmaceutical & Medical: Storage labeling in controlled environments

Industrial Freezer Facilities: Status indicators, part tags, and ID labels

Specification

Product Dimensions (mm)

71.28 x 34.78 x 12.3

Case Color

Black, White

Display Color

Black/White

Display Area (mm)

48.55 x 23.71

Display Resolution (Pixel)

250 x 122

DPI

130

NFC

Support (Optional)

Multiple Pages

Support 8 pages

LED

Red, Green, Blue, three primary   colors, Support 7 colors

Operating Temperature

-25C°- 0°C

Ambient Humidity

45% - 70%RH

Battery Type

Button Battery

Battery Life

>10 years

Waterproofing Level

IP66

Certification

CE, RoHS, FCC, MIC

Communication Frequency Band

2.400-2.480 GHz, Maximum EIRP ≤   10mW
