◆ 1/3" Sony 960H CCD 700TVL, 4* Dot-matrix IR Leds, 5~
◆ RS485, IR-CUT Filter ◆ High light suppression can adjust the light of whole image, especially when the headlights are too bright. It does not behave like highlight compensation which will block out high-bright areas. Besides, Dot-matrix IR LEDs output uniform light ◆ LED brightness and CDS start time can be adjusted according to different ambient light and different application environments ◆ IR LED brightness can be controlled via local cable joystick or via RS485 remotely ◆ RS485 remote control functions are very convenient for construction and installation ◆ Electronic shutter adjustable is good for different vehicle speed monitoring ◆ IR corrected lens, stay focus day and night. When common lens sees the small and part object, it will be out of focus at night because of the focus of infrared light and visible light are not at the same point ◆ Six kinds of mode selection with easy-operation.

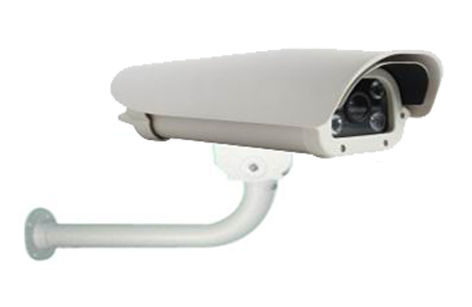

Product name High Resolution LPR Camera series Video system PAL/NTSC Sensor 1/ Pixel PAL:976(H)x 582(V)/NTSC:976(H)x 494(V) Resolution Color:650TVL B/W: 700TVL Video output 1.0Vp-p/75Ω Video composite video signal Capture mode Modes1-6 selectable, display in the monitor Addition function (Ground sensor model) LPR function when the car is in, normally monitor when the car pass away, ground sensor model LED 4pcs IR Led Lens 5-50mm DC lens Day/night IR LED , B/W image and ICR auto switching for IR model Power Supply DC12V (±10%), Work environment -30degree~70degree,20%~90% RH Temperature control Heater works at –5degree(optional), fan works at 45degree Dimension 290x147x101(mm) |
